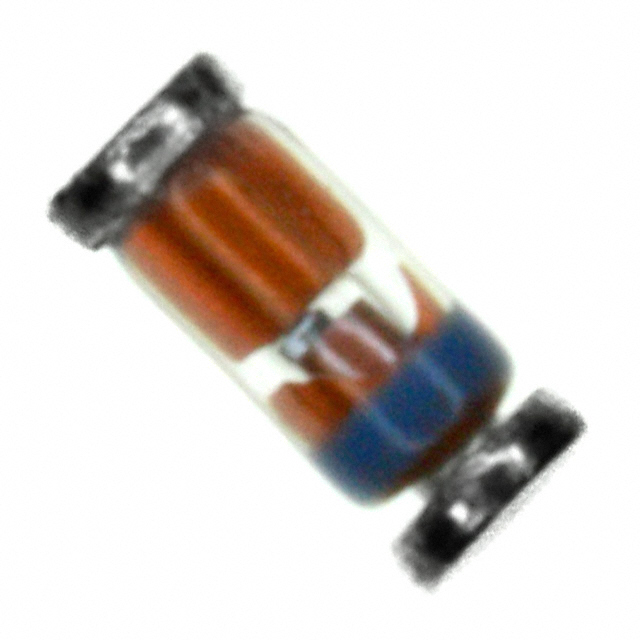

DL5230B-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Factory Lead Time :

8 Weeks

Power - Max :

500mW

Base Part Number :

DL5230

JESD-609 Code :

e3

Tolerance :

±5%

HTS Code :

8541.10.00.50

Current - Reverse Leakage @ Vr :

5µA @ 2V

Qualification Status :

Not Qualified

Power Dissipation-Max :

0.5W

Reference Voltage :

4.7V

ECCN Code :

EAR99

Terminal Position :

END

Pbfree Code :

yes

JESD-30 Code :

O-LELF-R2

Operating Temperature :

-65°C~175°C

Polarity :

Unidirectional

Terminal Finish :

Matte Tin (Sn)

Voltage - Zener (Nom) (Vz) :

4.7V

Diode Type :

ZENER DIODE

Voltage Tol-Max :

5%

Diode Element Material :

SILICON

RoHS Status :

RoHS Compliant

Case Connection :

Isolated

Working Test Current :

20mA

Published :

2009

Terminal Form :

WRAP AROUND

Time@Peak Reflow Temperature-Max (s) :

10

Reach Compliance Code :

Compliant

Package / Case :

DO-213AC, MINI-MELF, SOD-80

Peak Reflow Temperature (Cel) :

260

Dynamic Impedance-Max :

19Ohm

Packaging :

Tape and Reel (TR)

Pin Count :

2

Number of Terminations :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

Single

Number of Elements :

1

Surface Mount :

yes

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 200mA

Impedance-Max :

19Ohm

Mounting Type :

Surface Mount
