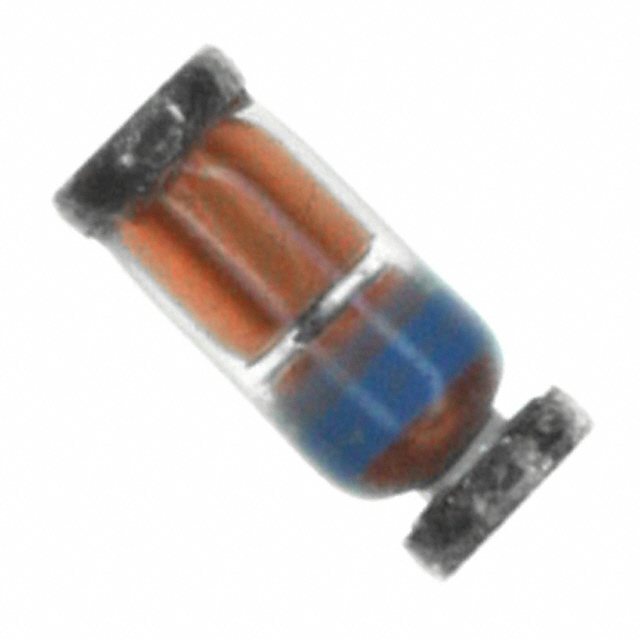

DL5229B-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Operating Temperature :

-65°C~175°C

JESD-609 Code :

e3

Polarity :

Unidirectional

Package / Case :

DO-213AC, MINI-MELF, SOD-80

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Factory Lead Time :

8 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power - Max :

500mW

Impedance-Max :

22Ohm

Pin Count :

2

Mounting Type :

Surface Mount

Power Dissipation-Max :

0.5W

JESD-30 Code :

O-LELF-R2

Terminal Finish :

Matte Tin (Sn)

Terminal Position :

END

Base Part Number :

DL5229

Number of Elements :

1

Tolerance :

±5%

Pbfree Code :

yes

Current - Reverse Leakage @ Vr :

5μA @ 1V

Diode Element Material :

SILICON

HTS Code :

8541.10.00.50

Voltage - Zener (Nom) (Vz) :

4.3V

Qualification Status :

Not Qualified

Published :

2009

Case Connection :

Isolated

Surface Mount :

yes

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 200mA

Reference Voltage :

4.3V

Number of Terminations :

2

Peak Reflow Temperature (Cel) :

260

Diode Type :

ZENER DIODE

Dynamic Impedance-Max :

22Ohm

RoHS Status :

RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

10

Voltage Tol-Max :

5%

Reach Compliance Code :

Compliant

Working Test Current :

20mA

Configuration :

Single

Terminal Form :

WRAP AROUND
