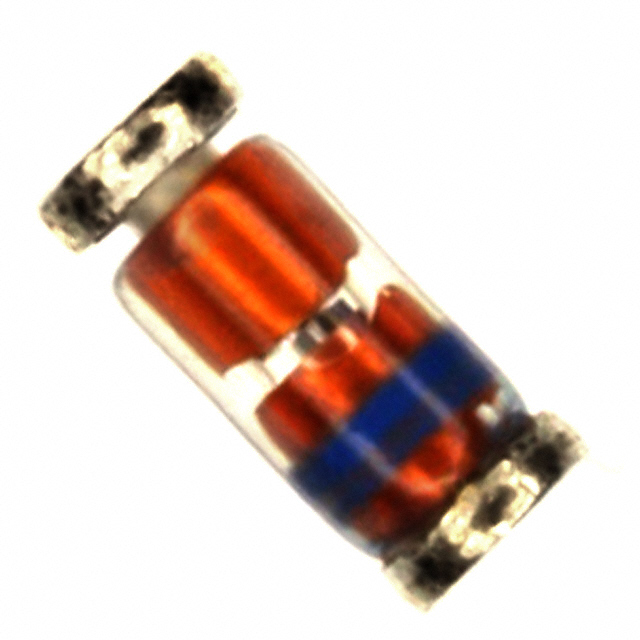

DL5227B-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Current - Reverse Leakage @ Vr :

15μA @ 1V

Reach Compliance Code :

Compliant

Terminal Finish :

Matte Tin (Sn)

Pin Count :

2

Voltage Tol-Max :

5%

JESD-30 Code :

O-LELF-R2

Number of Terminations :

2

Surface Mount :

yes

Published :

2009

JESD-609 Code :

e3

Pbfree Code :

yes

Time@Peak Reflow Temperature-Max (s) :

10

Polarity :

Unidirectional

Packaging :

Tape and Reel (TR)

Diode Type :

ZENER DIODE

Dynamic Impedance-Max :

24Ohm

ECCN Code :

EAR99

Tolerance :

±5%

Qualification Status :

Not Qualified

Impedance-Max :

24Ohm

Number of Elements :

1

Diode Element Material :

SILICON

Base Part Number :

DL5227

Peak Reflow Temperature (Cel) :

260

Configuration :

Single

Working Test Current :

20mA

Reference Voltage :

3.6V

Operating Temperature :

-65°C~175°C

Mounting Type :

Surface Mount

Terminal Position :

END

Terminal Form :

WRAP AROUND

Voltage - Zener (Nom) (Vz) :

3.6V

Factory Lead Time :

8 Weeks

Package / Case :

DO-213AC, MINI-MELF, SOD-80

Power Dissipation-Max :

0.5W

HTS Code :

8541.10.00.50

Power - Max :

500mW

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 200mA

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Case Connection :

Isolated
