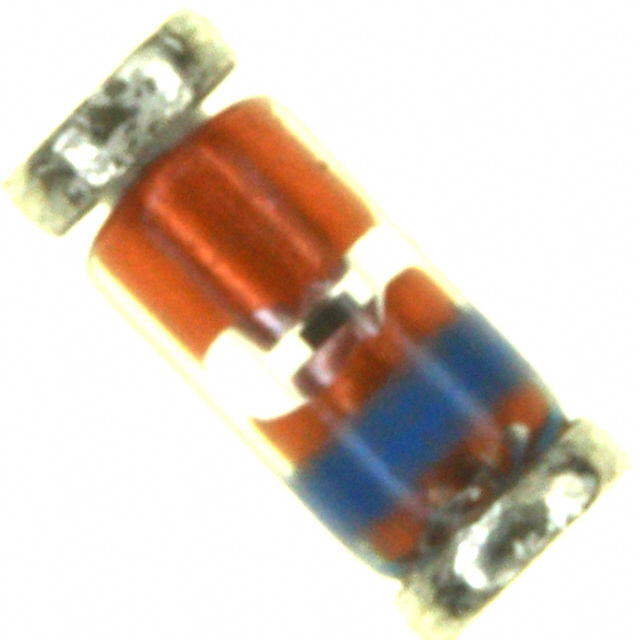

DL5228B-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Current - Reverse Leakage @ Vr :

10μA @ 1V

Published :

2009

Working Test Current :

20mA

Reference Voltage :

3.9V

Packaging :

Tape and Reel (TR)

Case Connection :

Isolated

Number of Terminations :

2

Number of Elements :

1

Package / Case :

DO-213AC, MINI-MELF, SOD-80

Surface Mount :

yes

Voltage Tol-Max :

5%

Diode Element Material :

SILICON

Pbfree Code :

yes

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 200mA

Configuration :

Single

Base Part Number :

DL5228

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power Dissipation-Max :

0.5W

JESD-609 Code :

e3

Peak Reflow Temperature (Cel) :

260

Factory Lead Time :

8 Weeks

Pin Count :

2

Time@Peak Reflow Temperature-Max (s) :

10

Impedance-Max :

23Ohm

RoHS Status :

RoHS Compliant

Dynamic Impedance-Max :

23Ohm

Diode Type :

ZENER DIODE

Voltage - Zener (Nom) (Vz) :

3.9V

Qualification Status :

Not Qualified

Operating Temperature :

-65°C~175°C

Power - Max :

500mW

Terminal Finish :

Matte Tin (Sn)

Tolerance :

±5%

Reach Compliance Code :

Compliant

Terminal Form :

WRAP AROUND

Mounting Type :

Surface Mount

JESD-30 Code :

O-LELF-R2

HTS Code :

8541.10.00.50

ECCN Code :

EAR99

Polarity :

Unidirectional

Terminal Position :

END
