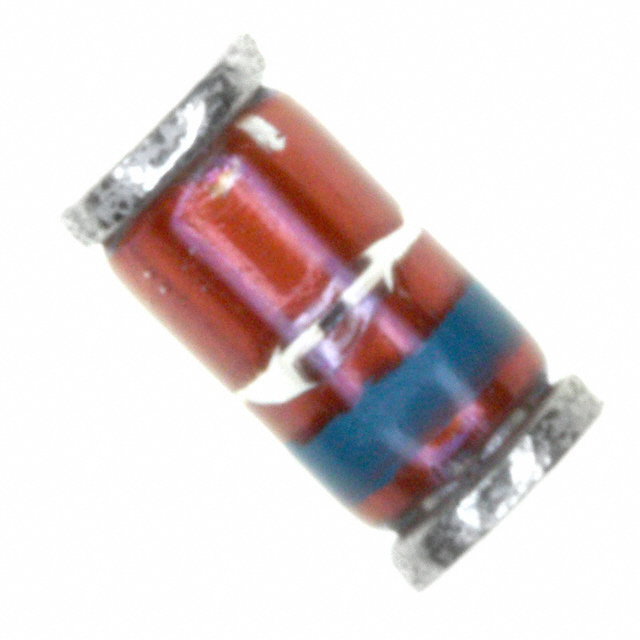

DL4748A-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Surface Mount :

yes

JESD-30 Code :

O-LELF-R2

Dynamic Impedance-Max :

23Ohm

Working Test Current :

11.5mA

Power Dissipation-Max :

1W

Reference Voltage :

22V

Current - Reverse Leakage @ Vr :

5μA @ 16.7V

Diode Type :

ZENER DIODE

HTS Code :

8541.10.00.50

Polarity :

Unidirectional

Voltage Tol-Max :

5%

Impedance-Max :

23Ohm

Factory Lead Time :

8 Weeks

Time@Peak Reflow Temperature-Max (s) :

10

Case Connection :

Isolated

Published :

2008

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

High Reliability

Voltage - Zener (Nom) (Vz) :

22V

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e3

Package / Case :

DO-213AB, MELF

Configuration :

Single

Tolerance :

±5%

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

260

Base Part Number :

DL4748

Reach Compliance Code :

Compliant

Terminal Form :

WRAP AROUND

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 200mA

Pbfree Code :

yes

Qualification Status :

Not Qualified

Pin Count :

2

Terminal Position :

END

Terminal Finish :

Matte Tin (Sn)

Operating Temperature :

-65°C~175°C

Number of Terminations :

2

RoHS Status :

RoHS Compliant

Mounting Type :

Surface Mount

Power - Max :

1W

Diode Element Material :

SILICON

Number of Elements :

1
