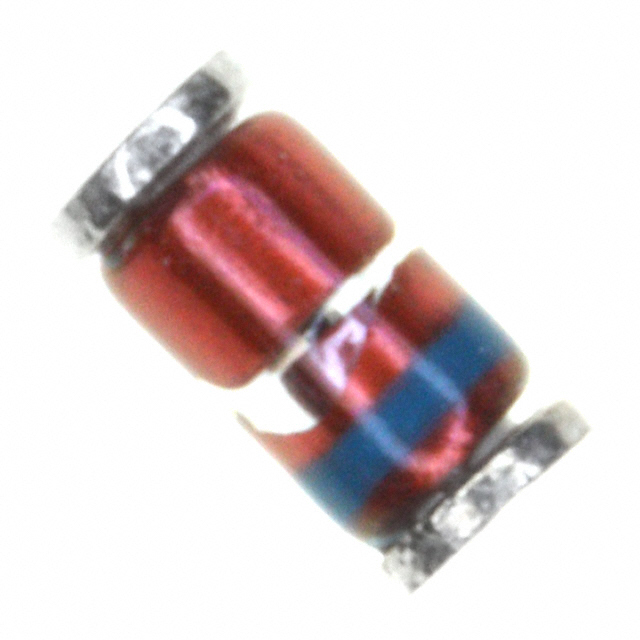

DL4730A-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Time@Peak Reflow Temperature-Max (s) :

10

Operating Temperature :

-65°C~175°C

Published :

2008

Power - Max :

1W

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 200mA

Terminal Form :

WRAP AROUND

Voltage Tol-Max :

5%

Impedance-Max :

9Ohm

Reference Voltage :

3.9V

Tolerance :

±5%

Number of Elements :

1

HTS Code :

8541.10.00.50

Terminal Finish :

Matte Tin (Sn)

Packaging :

Tape and Reel (TR)

Diode Type :

ZENER DIODE

Base Part Number :

DL4730

JESD-609 Code :

e3

Number of Terminations :

2

Reach Compliance Code :

Compliant

Qualification Status :

Not Qualified

Pin Count :

2

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Working Test Current :

64mA

Power Dissipation-Max :

1W

JESD-30 Code :

O-LELF-R2

Dynamic Impedance-Max :

9Ohm

RoHS Status :

RoHS Compliant

Configuration :

Single

Peak Reflow Temperature (Cel) :

260

Additional Feature :

High Reliability

Voltage - Zener (Nom) (Vz) :

3.9V

Diode Element Material :

SILICON

Terminal Position :

END

Case Connection :

Isolated

Polarity :

Unidirectional

Mounting Type :

Surface Mount

Package / Case :

DO-213AB, MELF

Pbfree Code :

yes

Current - Reverse Leakage @ Vr :

50μA @ 1V

Surface Mount :

yes

Factory Lead Time :

8 Weeks
