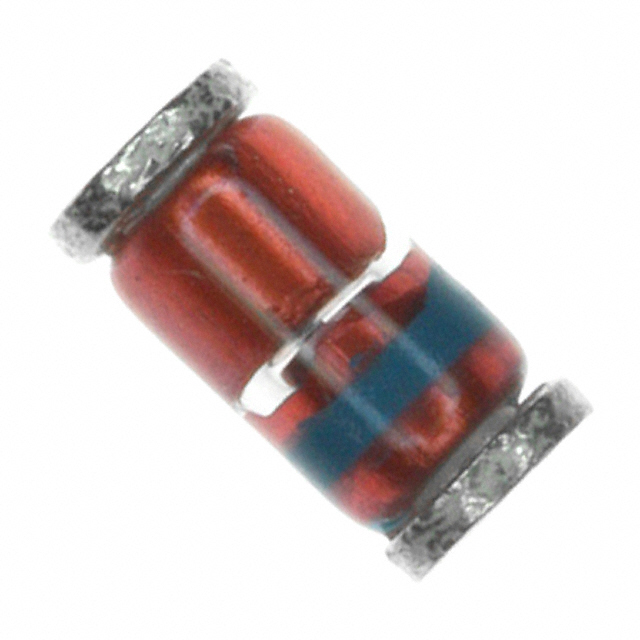

DL4731A-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Packaging :

Tape and Reel (TR)

Operating Temperature :

-65°C~175°C

JESD-609 Code :

e3

Reference Voltage :

4.3V

HTS Code :

8541.10.00.50

Terminal Form :

WRAP AROUND

Terminal Finish :

Matte Tin (Sn)

Published :

2008

Base Part Number :

DL4731

Impedance-Max :

9Ohm

Reach Compliance Code :

Compliant

Dynamic Impedance-Max :

9Ohm

Package / Case :

DO-213AB, MELF

Time@Peak Reflow Temperature-Max (s) :

10

Current - Reverse Leakage @ Vr :

10μA @ 1V

Pbfree Code :

yes

Working Test Current :

58mA

Tolerance :

±5%

Additional Feature :

High Reliability

Power Dissipation-Max :

1W

RoHS Status :

RoHS Compliant

Voltage - Zener (Nom) (Vz) :

4.3V

Case Connection :

Isolated

Qualification Status :

Not Qualified

Diode Type :

ZENER DIODE

Terminal Position :

END

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Configuration :

Single

Number of Elements :

1

Power - Max :

1W

JESD-30 Code :

O-LELF-R2

Mounting Type :

Surface Mount

Voltage Tol-Max :

5%

Polarity :

Unidirectional

Surface Mount :

yes

Factory Lead Time :

8 Weeks

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 200mA

Diode Element Material :

SILICON

Pin Count :

2

Peak Reflow Temperature (Cel) :

260

Number of Terminations :

2

ECCN Code :

EAR99
