DL4728A-TP

Share

Or copy the link below:

Mfr.Part #
DL4728A-TP
Manufacturer
Micro Commercial Components (MCC)
Package / Case
DO-213AB, MELF
Datasheet
Download
Description
DIODE ZENER 3.3V 1W MELF
Stock
28,647
In Stock :
28,647

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Micro Commercial Components (MCC)
Product Category :
Diodes - Zener - Single
Peak Reflow Temperature (Cel) :
260
Reach Compliance Code :
Compliant
Terminal Form :
WRAP AROUND
Voltage Tol-Max :
5%
Diode Type :
ZENER DIODE
Number of Terminations :
2
HTS Code :
8541.10.00.50
Reference Voltage :
3.3V
Published :
2007
Current - Reverse Leakage @ Vr :
100μA @ 1V
Operating Temperature :
-65°C~175°C
Time@Peak Reflow Temperature-Max (s) :
10
Mounting Type :
Surface Mount
Dynamic Impedance-Max :
10Ohm
RoHS Status :
RoHS Compliant
Qualification Status :
Not Qualified
Additional Feature :
High Reliability
Number of Elements :
1
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Power Dissipation-Max :
1W
Packaging :
Tape and Reel (TR)
Power - Max :
1W
Pbfree Code :
yes
Tolerance :
±5%
Configuration :
Single
Pin Count :
2
Terminal Finish :
Matte Tin (Sn)
JESD-609 Code :
e3
Base Part Number :
DL4728
Case Connection :
Isolated
Terminal Position :
END
Working Test Current :
76mA
Factory Lead Time :
8 Weeks
Surface Mount :
yes
Package / Case :
DO-213AB, MELF
Polarity :
Unidirectional
ECCN Code :
EAR99
Impedance-Max :
10Ohm
Voltage - Forward (Vf) (Max) @ If :
1.2V @ 200mA
Diode Element Material :
SILICON
JESD-30 Code :
O-LELF-R2
Voltage - Zener (Nom) (Vz) :
3.3V
Datasheets
DL4728A-TP
Introducing Diodes - Zener - Single Micro Commercial Components (MCC) DL4728A-TP from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:2, Operating Temperature:-65°C~175°C, Mounting Type:Surface Mount, Base Part Number:DL4728, Package / Case:DO-213AB, MELF, DL4728A-TP pinout, DL4728A-TP datasheet PDF, DL4728A-TP amp .Beyond Diodes - Zener - Single Micro Commercial Components (MCC) DL4728A-TP ,we also offer CZRQR3V3B-HF, CZRU52C4V7, CZRU52C10, Our vast inventory has you covered. Contact us now for immediate solutions.

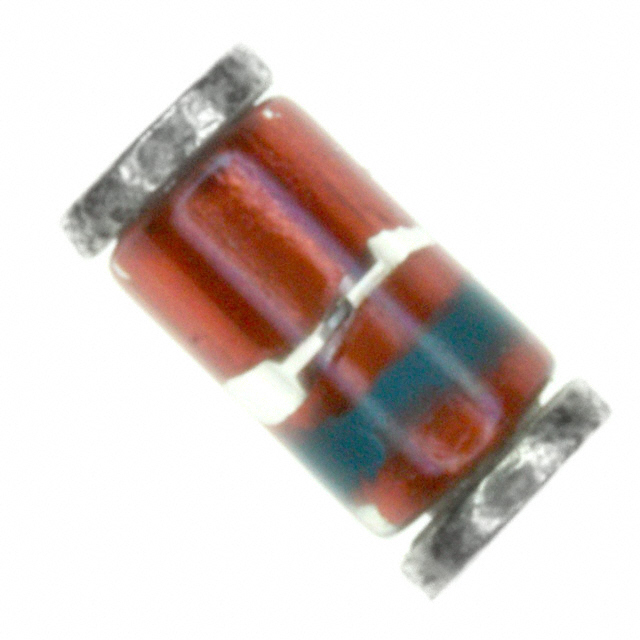

Micro Commercial Components (MCC) DL4728A-TP


ZENER DIODE 10Ohm ±5% 100μA @ 1V -65°C~175°C 2 Terminations DO-213AB, MELF

DL4728A-TP Overview


This electrical device requires reverse leakage current of 100μA @ 1V.Tol is the maximum voltage that can be supplied (5%).The maximum voltage - Zener (Nom) is reduced to 3.3V during operation.Working test voltage should be set to 76mA for this device to operate.Zener single diode reaches 1.2V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).

DL4728A-TP Features


reverse leakage current of 100μA @ 1V
100μA @ 1V is the maximum voltage (Tol)
the working test voltage to 76mA
minimal dynamic impedance is 76mA


DL4728A-TP Applications


There are a lot of Micro Commercial Co
DL4728A-TP applications of zener single diodes.
