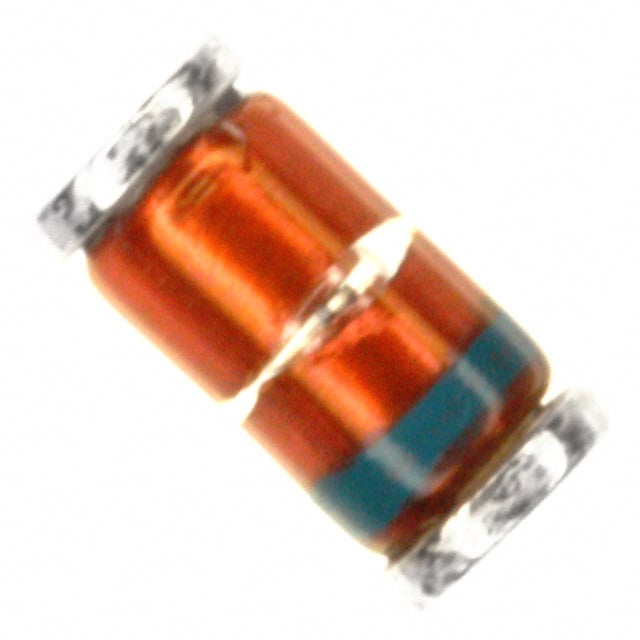

DL4744A-TP
Or copy the link below:
- Mfr.Part #
- DL4744A-TP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- DO-213AB, MELF
- Datasheet
- Download
- Description
- DIODE ZENER 15V 1W MELF
- Stock
- 34,857
- In Stock ：
- 34,857
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Diodes - Zener - Single
- Case Connection :
- Isolated
- Pin Count :
- 2
- Reference Voltage :
- 15V
- Dynamic Impedance-Max :
- 14Ohm
- Impedance-Max :
- 14Ohm
- Pbfree Code :
- yes
- Factory Lead Time :
- 8 Weeks
- Voltage - Zener (Nom) (Vz) :
- 15V
- JESD-30 Code :
- O-LELF-R2
- Base Part Number :
- DL4744
- Working Test Current :
- 17mA
- Power - Max :
- 1W
- Configuration :
- Single
- Terminal Form :
- WRAP AROUND
- Package / Case :
- DO-213AB, MELF
- Peak Reflow Temperature (Cel) :
- 260
- Terminal Finish :
- Matte Tin (Sn)
- Operating Temperature :
- -65°C~175°C
- Tolerance :
- ±5%
- Terminal Position :
- END
- Power Dissipation-Max :
- 1W
- Diode Element Material :
- SILICON
- Number of Terminations :
- 2
- Packaging :
- Tape and Reel (TR)
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Qualification Status :
- Not Qualified
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8541.10.00.50
- Surface Mount :
- yes
- Current - Reverse Leakage @ Vr :
- 5μA @ 11.4V
- Diode Type :
- ZENER DIODE
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Polarity :
- Unidirectional
- Published :
- 2008
- JESD-609 Code :
- e3
- Mounting Type :
- Surface Mount
- Voltage Tol-Max :
- 5%
- Number of Elements :
- 1
- Additional Feature :
- High Reliability
- Voltage - Forward (Vf) (Max) @ If :
- 1.2V @ 200mA
- Datasheets
- DL4744A-TP
ZENER DIODE 14Ohm ±5% 5μA @ 11.4V -65°C~175°C 2 Terminations DO-213AB, MELF
DL4744A-TP Overview
It is necessary to supply this electrical device with a reverse leakage current of 5μA @ 11.4V.A voltage of 5% indicates the maximum voltage (Tol) that can be supplied.In operation, the maximum voltage - Zener (Nom) is set to 15V.This device can only be operated when the working test voltage is set to 17mA.For the device to operate, the maximum forward voltage (Vf) 1.2V @ 200mA must be supplied.
DL4744A-TP Features
reverse leakage current of 5μA @ 11.4V
5μA @ 11.4V is the maximum voltage (Tol)
the working test voltage to 17mA
minimal dynamic impedance is 17mA
DL4744A-TP Applications
There are a lot of Micro Commercial Co
DL4744A-TP applications of zener single diodes.
