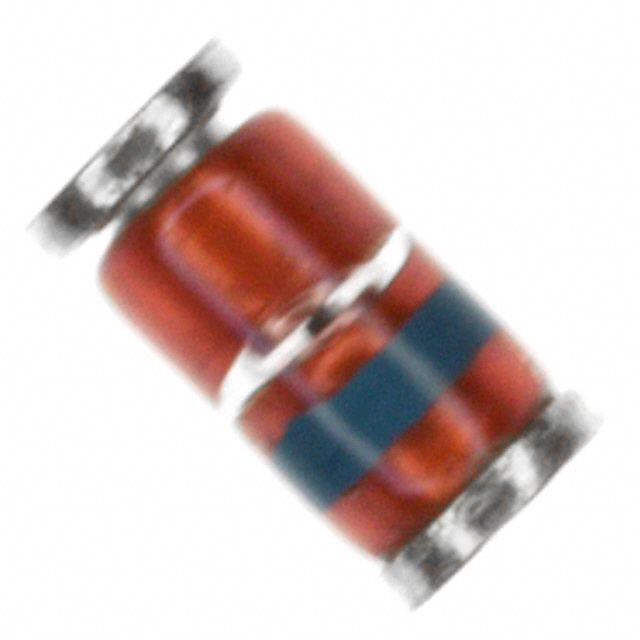

DL4742A-TP

Share

Or copy the link below:

Mfr.Part #
DL4742A-TP
Manufacturer
Micro Commercial Components (MCC)
Package / Case
DO-213AB, MELF
Datasheet
Download
Description
DIODE ZENER 12V 1W MELF
Stock
10,295
In Stock :
10,295

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Micro Commercial Components (MCC)
Product Category :
Diodes - Zener - Single
JESD-609 Code :
e3
Polarity :
Unidirectional
Mounting Type :
Surface Mount
Base Part Number :
DL4742
Power Dissipation-Max :
1W
Pin Count :
2
Power - Max :
1W
Additional Feature :
High Reliability
Packaging :
Tape and Reel (TR)
JESD-30 Code :
O-LELF-R2
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Diode Type :
ZENER DIODE
Voltage - Zener (Nom) (Vz) :
12V
Package / Case :
DO-213AB, MELF
Qualification Status :
Not Qualified
Diode Element Material :
SILICON
Number of Terminations :
2
Surface Mount :
yes
Terminal Finish :
Matte Tin (Sn)
Working Test Current :
21mA
Factory Lead Time :
8 Weeks
Reference Voltage :
12V
Case Connection :
Isolated
Pbfree Code :
yes
Impedance-Max :
9Ohm
HTS Code :
8541.10.00.50
Dynamic Impedance-Max :
9Ohm
Current - Reverse Leakage @ Vr :
5μA @ 9.1V
Peak Reflow Temperature (Cel) :
260
Number of Elements :
1
Published :
2008
Terminal Form :
WRAP AROUND
Voltage Tol-Max :
5%
Operating Temperature :
-65°C~175°C
Voltage - Forward (Vf) (Max) @ If :
1.2V @ 200mA
Terminal Position :
END
ECCN Code :
EAR99
Time@Peak Reflow Temperature-Max (s) :
10
RoHS Status :
ROHS3 Compliant
Tolerance :
±5%
Configuration :
Single
Datasheets
DL4742A-TP
Introducing Diodes - Zener - Single Micro Commercial Components (MCC) DL4742A-TP from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Base Part Number:DL4742, Package / Case:DO-213AB, MELF, Number of Terminations:2, Operating Temperature:-65°C~175°C, DL4742A-TP pinout, DL4742A-TP datasheet PDF, DL4742A-TP amp .Beyond Diodes - Zener - Single Micro Commercial Components (MCC) DL4742A-TP ,we also offer CZRQR3V3B-HF, CZRU52C4V7, CZRU52C10, Our vast inventory has you covered. Contact us now for immediate solutions.

Micro Commercial Components (MCC) DL4742A-TP


ZENER DIODE 9Ohm ±5% 5μA @ 9.1V -65°C~175°C 2 Terminations DO-213AB, MELF

DL4742A-TP Overview


The reverse leakage current for this electrical device should be 5μA @ 9.1V.5% indicates the maximum possible voltage (Tol) of 5%.While operating, the maximum voltage - Zener (Nom) is reduced to 12VV.This device should be operated at 21mA on the working test voltage.For its operation, maximum voltage - Forward (Vf) 1.2V @ 200mA is provided.

DL4742A-TP Features


reverse leakage current of 5μA @ 9.1V
5μA @ 9.1V is the maximum voltage (Tol)
the working test voltage to 21mA
minimal dynamic impedance is 21mA
