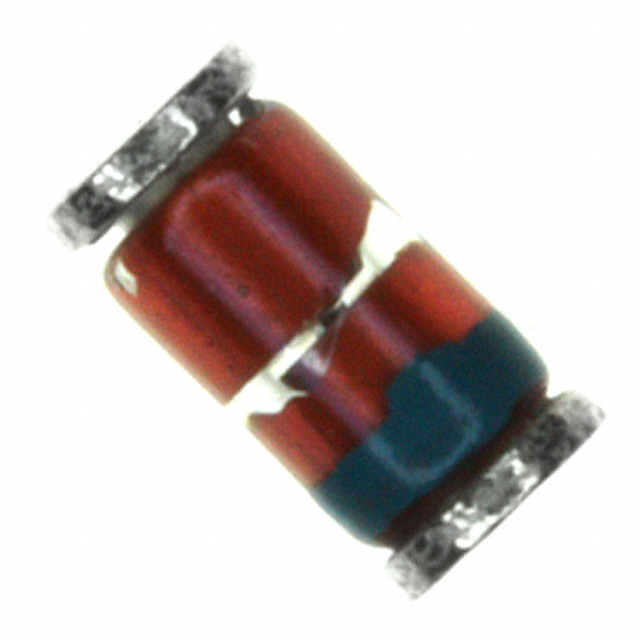

DL4741A-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Package / Case :

DO-213AB, MELF

Voltage - Zener (Nom) (Vz) :

11V

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 200mA

Mounting Type :

Surface Mount

Dynamic Impedance-Max :

8Ohm

RoHS Status :

RoHS Compliant

Additional Feature :

High Reliability

Power Dissipation-Max :

1W

Time@Peak Reflow Temperature-Max (s) :

10

Terminal Form :

WRAP AROUND

Published :

2008

Reach Compliance Code :

Compliant

Number of Terminations :

2

JESD-30 Code :

O-LELF-R2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Reflow Temperature (Cel) :

260

Polarity :

Unidirectional

Case Connection :

Isolated

Terminal Position :

END

Terminal Finish :

Matte Tin (Sn)

Tolerance :

±5%

Current - Reverse Leakage @ Vr :

5µA @ 8.4V

Impedance-Max :

8Ohm

Pin Count :

2

HTS Code :

8541.10.00.50

Diode Type :

ZENER DIODE

Factory Lead Time :

8 Weeks

Power - Max :

1W

Surface Mount :

yes

Configuration :

Single

Qualification Status :

Not Qualified

Operating Temperature :

-65°C~175°C

Diode Element Material :

SILICON

Voltage Tol-Max :

5%

Working Test Current :

23mA

Number of Elements :

1

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Base Part Number :

DL4741

ECCN Code :

EAR99

JESD-609 Code :

e3

Reference Voltage :

11V
