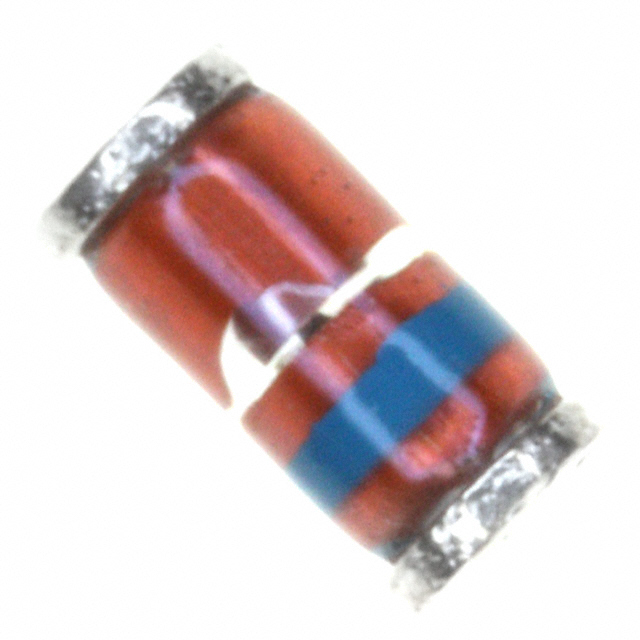

DL4736A-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Zener - Single

Current - Reverse Leakage @ Vr :

10μA @ 4V

Terminal Position :

END

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Factory Lead Time :

8 Weeks

Case Connection :

Isolated

Voltage Tol-Max :

5%

HTS Code :

8541.10.00.50

Voltage - Zener (Nom) (Vz) :

6.8V

Published :

2003

Power - Max :

1W

Package / Case :

DO-213AB, MELF

JESD-609 Code :

e3

Working Test Current :

37mA

Configuration :

Single

Diode Element Material :

SILICON

Dynamic Impedance-Max :

3.5Ohm

Time@Peak Reflow Temperature-Max (s) :

10

Impedance-Max :

3.5Ohm

RoHS Status :

RoHS Compliant

Qualification Status :

Not Qualified

Surface Mount :

yes

JESD-30 Code :

O-LELF-R2

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 200mA

Polarity :

Unidirectional

Pbfree Code :

yes

Number of Elements :

1

Tolerance :

±5%

Diode Type :

ZENER DIODE

Terminal Form :

WRAP AROUND

Base Part Number :

DL4736

Packaging :

Tape and Reel (TR)

Reach Compliance Code :

Compliant

Additional Feature :

High Reliability

Number of Terminations :

2

Terminal Finish :

Matte Tin (Sn)

Power Dissipation-Max :

1W

Peak Reflow Temperature (Cel) :

260

Operating Temperature :

-65°C~175°C

Reference Voltage :

6.8V

Pin Count :

2
