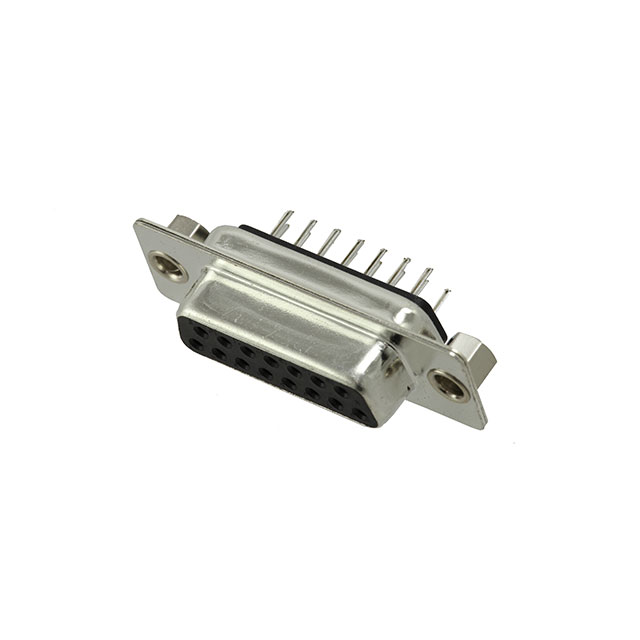

DA15-ST-1-SL

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Contact Material :

Phosphor Bronze

PCB Contact Pattern :

STAGGERED

Dielectric Withstanding Voltage :

1000VAC V

Series :

DST

Packaging :

Tray

Current Rating (Amps) :

5A

Connector Style :

D-Sub

Number of Positions :

15

Body Depth :

0.464 inch

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Type :

Through Hole

Termination :

Solder

Reference Standard :

UL, CSA

Factory Lead Time :

9 Weeks

Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Termination :

0.189 inch

Number of Rows :

2

Shell Size, Connector Layout :

2 DA A

Insulation Material :

Nylon

Flange Feature :

Board Side (4-40)

Mating Contact Pitch :

0.109 inch

Shell Material, Finish :

Steel, Tin Plated

Material Flammability Rating :

UL94 V-0

Contact Finish :

Gold

Operating Temperature :

-65°C~125°C

Body Breadth :

0.494 inch

Contact Pattern :

STAGGERED

Number Of PCB Rows :

2

Contact Style :

RND PIN-SKT

Connector Type :

Receptacle, Female Sockets

Reliability :

COMMERCIAL

Insulation Resistance :

5000000000Ohm

Mounting Option 2 :

CLINCH NUT

Total Number of Contacts :

15

Contact Finish Thickness :

Flash

RoHS Status :

ROHS3 Compliant

Body Length or Diameter :

1.541 inch

Voltage - Rated :

250VAC
