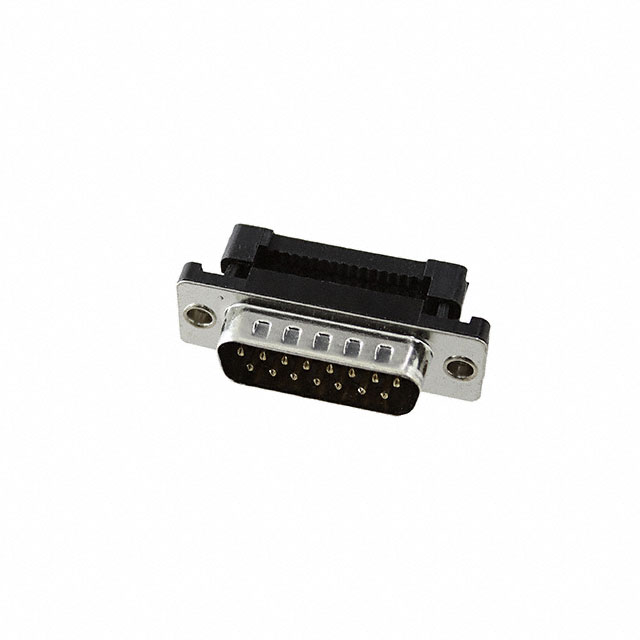

DA15-PF-M2
Or copy the link below:
- Mfr.Part #
- DA15-PF-M2
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 15POS IDC
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Factory Lead Time :
- 9 Weeks
- Number of Positions :
- 15
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Grounding Indents
- Color :
- Black
- Shell Size, Connector Layout :
- 2 DA A
- Total Number of Contacts :
- 15
- Material Flammability Rating :
- UL94 V-0
- Connector Style :
- D-Sub
- Contact Design :
- PREASSEM CONN
- Body Length or Diameter :
- 1.541 inch
- Contact Material :
- COPPER ALLOY
- Shell Material, Finish :
- Steel, Tin Plated
- Flange Feature :
- Housing/Shell (4-40)
- Wire Size (Min) :
- 30 AWG
- Contact Style :
- RND PIN-SKT
- Voltage - Rated :
- 250VAC
- Current Rating (Amps) :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Reliability :
- COMMERCIAL
- Contact Pattern :
- STAGGERED
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Finish :
- Gold
- Mounting Option 2 :
- LOCKING
- Termination :
- IDC, Ribbon Cable
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- DPF
- Reference Standard :
- UL, CSA
- Mating Contact Pitch :
- 0.109 inch
- Material :
- Metal
- Packaging :
- Tray
- Insulation Resistance :
- 5000000000Ohm
- Operating Temperature :
- -55°C~105°C
- Dielectric Material :
- Thermoplastic
- Connector Type :
- Plug, Male Pins
- Datasheets
- DA15-PF-M2
DPF Series D-Sub Plug, Male Pins 15-Position IDC, Ribbon Cable 2 DA A Free Hanging (In-Line) Copper Alloy Gold Steel, Tin Plated
DA15-PF-M2 Overview
Packaging is Plug, Male Pins.This device has a Free Hanging (In-Line) mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the DPF Series.Several benefits come from the Grounding Indents feature.Devices operate at -55°C~105°C operating temperatures.
DA15-PF-M2 Features
DPF series
DA15-PF-M2 Applications
There are a lot of Adam Tech
DA15-PF-M2 D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
