DA15-PL-24

Share

Or copy the link below:

Mfr.Part #
DA15-PL-24
Manufacturer
Adam Tech
Package / Case
Datasheet
Download
Description
CONN D-SUB PLUG 15POS R/A SLDR
Stock
1,502
In Stock :
1,502

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Adam Tech
Product Category :
D-Sub Connector Assemblies
Connector Style :
D-Sub
PCB Contact Pattern :
STAGGERED
Reference Standard :
UL, CSA
Filter Feature :
No
Option :
GENERAL PURPOSE
Contact Finish :
Gold
Backset Spacing :
0.319 (8.10mm)
Mounting Option 2 :
INSERT
Contact Finish Thickness :
Flash
Total Number of Contacts :
15
Body Length or Diameter :
1.541 inch
Contact Pattern :
STAGGERED
Contact Style :
RND PIN-SKT
Number of Rows :
2
Number of Positions :
15
MIL Conformance :
No
Color :
Black
Lead Free :
Lead Free
Mating Contact Pitch :
0.109 inch
Operating Temperature :
-55°C~105°C
Body Breadth :
0.494 inch
IEC Conformance :
No
Number Of PCB Rows :
2
Body Depth :
0.488 inch
Series :
DPL
Additional Feature :
RoHS Compliant
Insulation Material :
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Contact Material :
COPPER ALLOY
Feature :
Board Lock, Grounding Indents
Termination :
Solder
Material Flammability Rating :
UL94 V-0
Reliability :
COMMERCIAL
Packaging :
Tray
Empty Shell :
No
Factory Lead Time :
9 Weeks
Shell Material, Finish :
Steel, Tin Plated
Connector Type :
Plug, Male Pins
Mounting Type :
Through Hole, Right Angle
Insulation Resistance :
5000000000Ohm
DIN Conformance :
No
Dielectric Material :
Polybutylene Terephthalate (PBT), Glass Filled
Dielectric Withstanding Voltage :
1000VAC V
Current Rating (Amps) :
3A
Flange Feature :
Housing/Shell (4-40)
Voltage - Rated :
250VAC
Mixed Contacts :
No
RoHS Status :
ROHS3 Compliant
Shell Size, Connector Layout :
2 DA A
Shell Finish :
Tin
Orientation :
RIGHT ANGLE
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
UL Flammability Code :
94V-0
Introducing D-Sub Connector Assemblies Adam Tech DA15-PL-24 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, Right Angle, DA15-PL-24 pinout, DA15-PL-24 datasheet PDF, DA15-PL-24 amp .Beyond D-Sub Connector Assemblies Adam Tech DA15-PL-24 ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

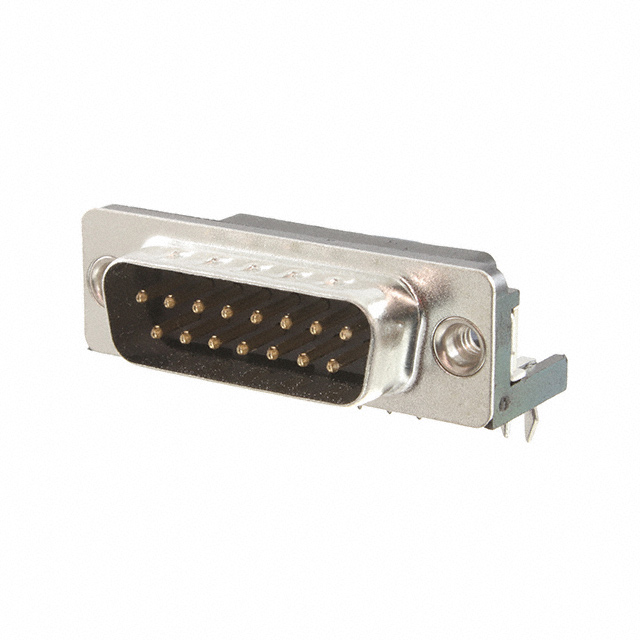

Adam Tech DA15-PL-24


DPL Series D-Sub Plug, Male Pins 15-Position Solder 2 DA A Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated

DA15-PL-24 Overview


This product is packaged in a Plug, Male Pins cartonThrough Hole, Right Angle is the mounting type of the device.We pack the product in a Tray case.This is from the DPL Series.As well as ROHS COMPLIANT, to name a few.A number of advantages can be derived from its Board Lock, Grounding Indents feature.-55°C~105°C Operating Temperature is the default.

DA15-PL-24 Features


DPL series


DA15-PL-24 Applications


There are a lot of Adam Tech
DA15-PL-24 D-Sub Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
