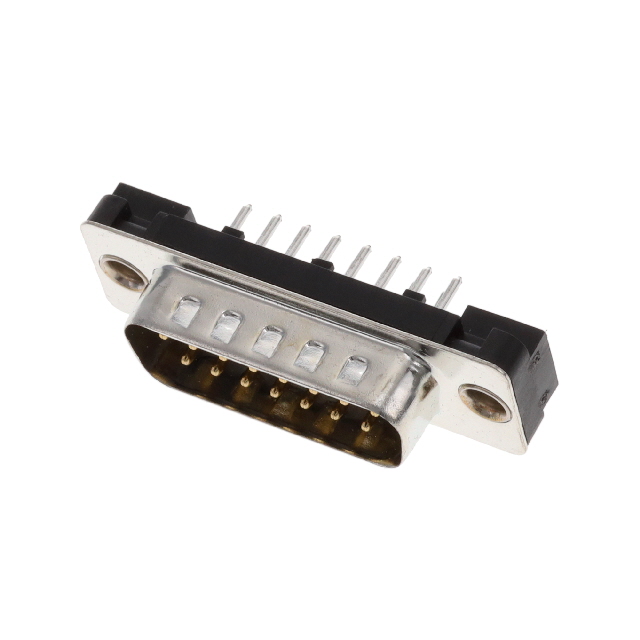

DA15-PA-M2
Or copy the link below:
- Mfr.Part #
- DA15-PA-M2
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 15POS VERT SLDR
- Stock
- 8,341
- In Stock ：
- 8,341
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Number of Rows :
- 2
- Current Rating (Amps) :
- 5A
- Contact Pattern :
- STAGGERED
- Series :
- DPA
- Color :
- Black
- Contact Finish :
- Gold
- Shell Material, Finish :
- Steel, Tin Plated
- Number of Positions :
- 15
- Connector Style :
- D-Sub
- Mounting Option 1 :
- LOCKING
- Mating Contact Pitch :
- 0.109 inch
- Feature :
- Grounding Indents
- Reliability :
- COMMERCIAL
- RoHS Status :
- ROHS3 Compliant
- Contact Style :
- RND PIN-SKT
- Length - Termination :
- 0.189 inch
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Body Breadth :
- 0.494 inch
- Mounting Type :
- Through Hole
- Reference Standard :
- UL
- Shell Size, Connector Layout :
- 2 DA A
- Insulation Resistance :
- 5000000000Ohm
- Dielectric Withstanding Voltage :
- 1000VAC V
- Termination :
- Solder
- Total Number of Contacts :
- 15
- Operating Temperature :
- -65°C~125°C
- Contact Finish Thickness :
- Flash
- Connector Type :
- Plug, Male Pins
- Packaging :
- Tray
- Mounting Option 2 :
- JACKSCREW
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flange Feature :
- Housing/Shell (4-40)
- Factory Lead Time :
- 9 Weeks
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Contact Material :
- Phosphor Bronze
- Voltage - Rated :
- 250V
- Material Flammability Rating :
- UL94 V-0
- Body Length or Diameter :
- 1.541 inch
- Datasheets
- DA15-PA-M2
DPA Series D-Sub Plug, Male Pins 15-Position Solder 2 DA A Through Hole Phosphor Bronze Gold Steel, Tin Plated
DA15-PA-M2 Overview
The product comes in a package of Plug, Male Pins.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the DPA Series of products.A number of features make it more powerful because of its Grounding Indents feature.There is no operating temperature for the device.
DA15-PA-M2 Features
DPA series
DA15-PA-M2 Applications
There are a lot of Adam Tech
DA15-PA-M2 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
