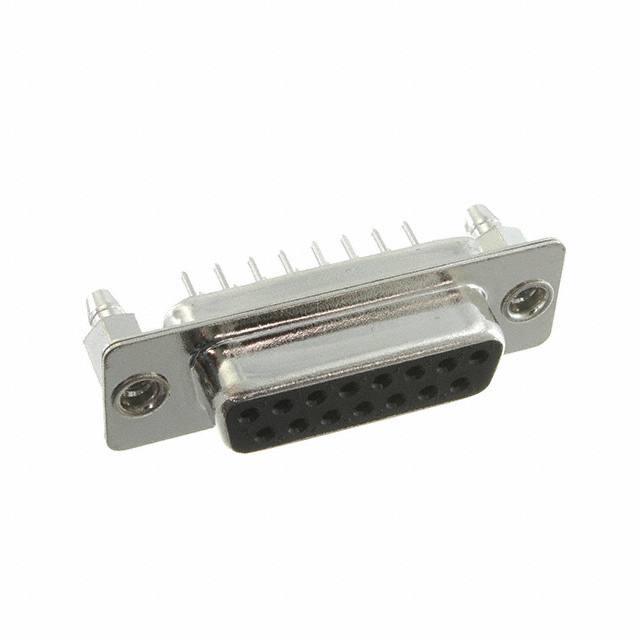

DA15-ST-1-BL
Or copy the link below:
- Mfr.Part #
- DA15-ST-1-BL
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS VERT SLDR
- Stock
- 99
- In Stock ：
- 99
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Contact Pattern :
- STAGGERED
- Contact Finish Thickness :
- Flash
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Connector Style :
- D-Sub
- Body Length or Diameter :
- 1.541 inch
- Mounting Type :
- Through Hole
- Gender :
- FEMALE
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish :
- Gold
- Reference Standard :
- UL, CSA
- Contact Style :
- RND PIN-SKT
- Number Of PCB Rows :
- 2
- Series :
- DST
- Shell Material, Finish :
- Steel, Tin Plated
- PCB Contact Pattern :
- STAGGERED
- RoHS Status :
- ROHS3 Compliant
- Total Number of Contacts :
- 15
- Flange Feature :
- Board Side (4-40)
- Pitch :
- 8.08mm
- Shell Finish :
- Tin
- Number of Positions :
- 15
- Color :
- Black
- Factory Lead Time :
- 9 Weeks
- Body Breadth :
- 0.494 inch
- Termination :
- Solder
- Insulation Resistance :
- 5000000000Ohm
- Current Rating (Amps) :
- 3A
- Additional Feature :
- RoHS Compliant
- Voltage - Rated :
- 250VAC
- Feature :
- Board Lock
- Contact Material :
- Brass
- Reliability :
- COMMERCIAL
- Number of Rows :
- 2
- Current Rating :
- 5A
- Dielectric Withstanding Voltage :
- 1000VAC V
- Operating Temperature :
- -55°C~85°C
- Mounting Option 2 :
- RIVET and JACKSCREW
- Length - Termination :
- 0.189 inch
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Size, Connector Layout :
- 2 DA A
- Datasheets
- DA15-ST-1-BL
DST Series D-Sub Receptacle, Female Sockets 15-Position Female Solder 2 DA A Through Hole Brass Gold Steel, Tin Plated
DA15-ST-1-BL Overview
The product is packaged in Receptacle, Female Sockets.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the DST Series, it can be found in this category.There are also other features such as ROHS COMPLIANT, to name only a few.With its Board Lock feature, it is more powerful in many ways.The device is operating at -55°C~85°C Operating Temperature.
DA15-ST-1-BL Features
DST series
DA15-ST-1-BL Applications
There are a lot of Adam Tech
DA15-ST-1-BL D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
