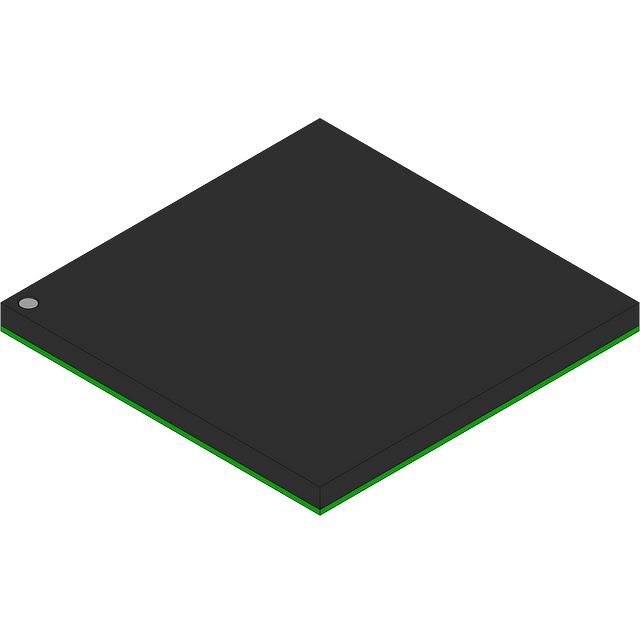

CYD09S72V18-167BGXC

Manufacturer :

Infineon Technologies

Product Category :

Memory

Seated Height-Max :

2.16 mm

Temperature Grade :

COMMERCIAL

Manufacturer :

Cypress Semiconductor

JESD-609 Code :

e1

Terminal Pitch :

1 mm

Memory Width :

72

Base Product Number :

CYD09S72

Standby Current-Max :

0.2 A

Package / Case :

484-BGA

Package :

Bulk

Number of Functions :

1

Reach Compliance Code :

Compliant

Length :

23 mm

ECCN Code :

3A991.B.2.A

Width :

23 mm

Number of Words :

131072 words

Operating Mode :

SYNCHRONOUS

Clock Frequency :

167 MHz

Qualification Status :

Not Qualified

JESD-30 Code :

S-PBGA-B484

Organization :

128KX72

Memory IC Type :

DUAL-PORT SRAM

Standby Voltage-Min :

1.4 V

Memory Format :

SRAM

Technology :

SRAM - Dual Port, Standard

Memory Type :

Volatile

Memory Density :

9437184 bit

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

Ball

Supply Voltage-Max (Vsup) :

1.58 V

Additional Feature :

PIPELINED OR FLOW-THROUGH ARCHITECTURE, IT CAN ALSO OPERATES AT 1.8V

Write Cycle Time - Word, Page :

-

Subcategory :

SRAMs

Series :

-

Supply Current-Max :

0.7 mA

Power Supplies :

1.5/1.8 V

Voltage - Supply :

1.7V ~ 1.9V, 2.4V ~ 2.6V, 2.7V ~ 3.3V

Terminal Position :

BOTTOM

Pbfree Code :

yes

Package Shape :

Square

Memory Size :

9Mbit

Memory Interface :

Parallel

Supplier Device Package :

484-PBGA (23x23)

RoHS :

Non-Compliant

Mounting Type :

Surface Mount

Supply Voltage-Min (Vsup) :

1.42 V

Number of Ports :

2

Operating Temperature :

0°C ~ 70°C (TA)

Parallel/Serial :

Parallel

Product Status :

Active

Memory Organization :

128K x 72

Access Time :

3.3 ns

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Number of Terminals :

484

HTS Code :

8542.32.00.41

I/O Type :

COMMON

Surface Mount :

yes

Pin Count :

484

Output Characteristics :

3-STATE
