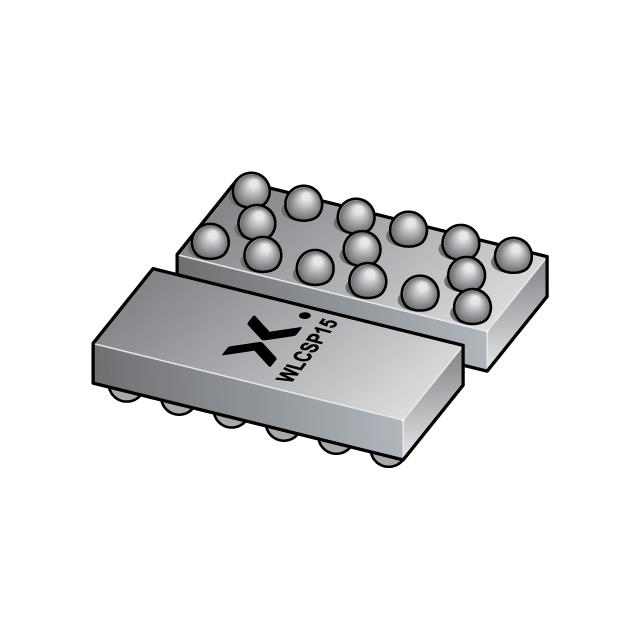

CM1401-03CP

Manufacturer :

onsemi

Product Category :

EMI/RFI Filters (LC, RC Networks)

Reach Compliance Code :

Unknown

Package / Case :

15-WFBGA, WLCSP

Additional Feature :

PI-TYPE CIRCUIT

Lifecycle Status :

OBSOLETE (Last Updated: 2 days ago)

Approval Agency :

IEC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Circuit Type :

Filter

Lead Free :

Lead Free

Pin Count :

15

Resistance :

100Ohm

Type :

Low Pass

Depth :

1.33mm

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Size / Dimension :

0.117Lx0.052W 2.96mmx1.33mm

Attenuation Value :

30dB @ 800MHz ~ 2.7GHz

Capacitance :

30pF

ECCN Code :

EAR99

Resistance - Channel (Ω) :

100

Number of Channels :

4

Packaging :

Tape and Reel (TR)

Height :

0.026 0.65mm

Output Impedance :

50Ohm Ω

Applications :

Data Lines for Mobile Devices

Published :

2010

Mounting Type :

Surface Mount

Termination :

SMD/SMT

Number of Functions :

4

JESD-609 Code :

e1

Number of Pins :

15

RoHS Status :

RoHS Compliant

Filter Order :

2nd

Center / Cutoff Frequency :

58MHz Cutoff

Packing Method :

Tape and Reel

ESD Protection :

yes

Values :

R = 100 Ω, C = 30pF

Operating Temperature :

-40°C~85°C
