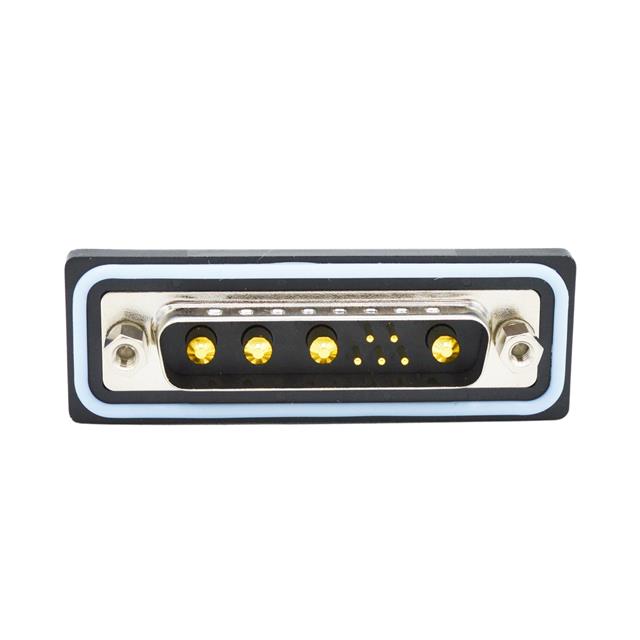

CDFS9W4103L412
Or copy the link below:
- Mfr.Part #
- CDFS9W4103L412
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS PNL MNT
- Stock
- 4,909
- In Stock ：
- 4,909
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Voltage Rating :
- -
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Gender :
- Male
- Mounting Style :
- Panel
- Material Flammability Rating :
- UL94 V-0
- Shell Material, Finish :
- Steel, Nickel Plated
- Shell Material :
- Steel
- Shell Plating :
- Nickel
- Package :
- Tray
- Product Status :
- Active
- Maximum Operating Temperature :
- + 85 C
- Connector Style :
- D-Sub, Combo
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Packaging :
- Tray
- Contact Arrangement :
- 9W4
- Termination Style :
- Solder Cup
- Backset Spacing :
- -
- Operating Temperature :
- -25°C ~ 85°C
- Features :
- Grounding Indents
- Mounting Angle :
- Straight
- Contact Finish :
- Gold
- Series :
- CDFS
- Shell Size, Connector Layout :
- 3 (DB, B) - 9W4
- Number of Positions :
- 9 (5 + 4 Power)
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Connector Type :
- Plug, Male Pins
- RoHS :
- Details
- Contact Material :
- COPPER ALLOY
- Color :
- -
- Current Rating (Amps) :
- -
- Number of Rows :
- 2
- Contact Type :
- Signal and Power
- Contact Form :
- Machined
- Contact Plating :
- Gold
- Mounting Type :
- Panel Mount
- Minimum Operating Temperature :
- - 25 C
- Tradename :
- NANOOK
- Wire Gauge :
- -
- Filter Type :
- -
- Base Product Number :
- CDFS9W4
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Termination :
- Solder Cup
- Insulation :
- Insulated
- Datasheets
- CDFS9W4103L412
CDFS9W4103L412 Documents
CDFS Series D-Sub, Combo Plug, Male Pins 9 (5 + 4 Power)-Position Male Signal and Power Solder Cup 3 (DB, B) - 9W4 Panel Mount Copper Alloy Gold Steel, Nickel Plated
CDFS9W4103L412 Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Panel Mount.In order to package the product, a Tray case is used.It belongs to the CDFS Series of products.The device runs in -25°C ~ 85°C Operating Temperature.
CDFS9W4103L412 Features
CDFS series
CDFS9W4103L412 Applications
There are a lot of NorComp
CDFS9W4103L412 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
