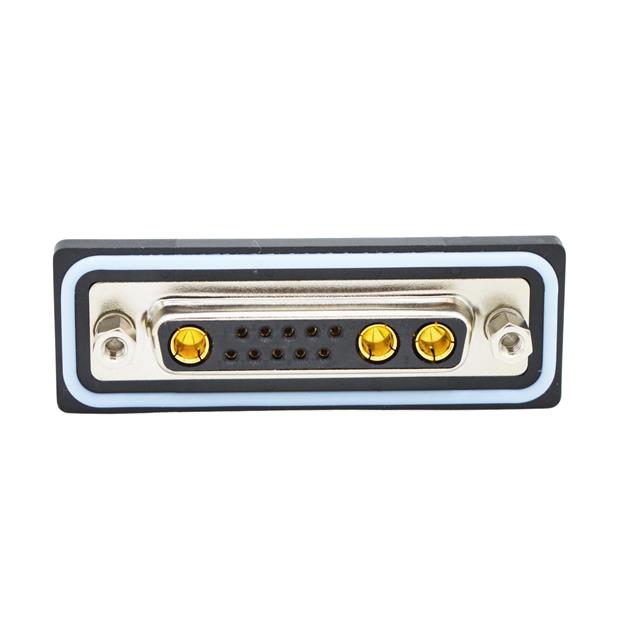

CDFS13W3203L411

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Shell Plating :

Nickel

Series :

CDFS

Body Orientation :

Straight

Backset Spacing :

-

Packaging :

Tray

Mounting Angle :

Straight

Pitch :

2.77mm

Contact Finish :

Gold

RoHS :

Details

Number of Positions :

13 (10 + 3 Power)

Connector Type :

Receptacle, Female Sockets

Voltage Rating :

-

Package :

Tray

Gender :

FEMALE

Number of Rows :

2

Contact Finish Thickness :

Flash

Termination Style :

Solder Cup

Contact Arrangement :

13W3

Shell Material :

Steel

Product Status :

Active

Minimum Operating Temperature :

- 25 C

Mounting Hardware :

4-40 Screw Locks

Shell Size, Connector Layout :

3 (DB, B) - 13C3, 13W3

Base Product Number :

CDFS13W

Color :

-

Contact Type :

10 Signal, 3 Power

Termination :

Solder Cup

Connector Style :

D-Sub, Combo

Number of Contacts :

25

Features :

-

Operating Temperature :

-25°C ~ 85°C

Contact Material :

COPPER ALLOY

Material Flammability Rating :

UL94 V-0

Tradename :

NANOOK

Flange Feature :

Mating Side, Female Screwlock (4-40)

Mounting Type :

PCB Mount

Mounting Style :

Panel

Contact Form :

Machined

Insulation :

Insulated

Current Rating (Amps) :

-

Maximum Operating Temperature :

+ 85 C

Wire Gauge :

-

Ingress Protection :

IP67 - Dust Tight, Waterproof

Dielectric Material :

Polybutylene Terephthalate (PBT)

Contact Plating :

Gold

Filter Type :

-

Shell Material, Finish :

Steel, Nickel Plated

Insulation Material :

Polybutylene Terephthalate (PBT)
