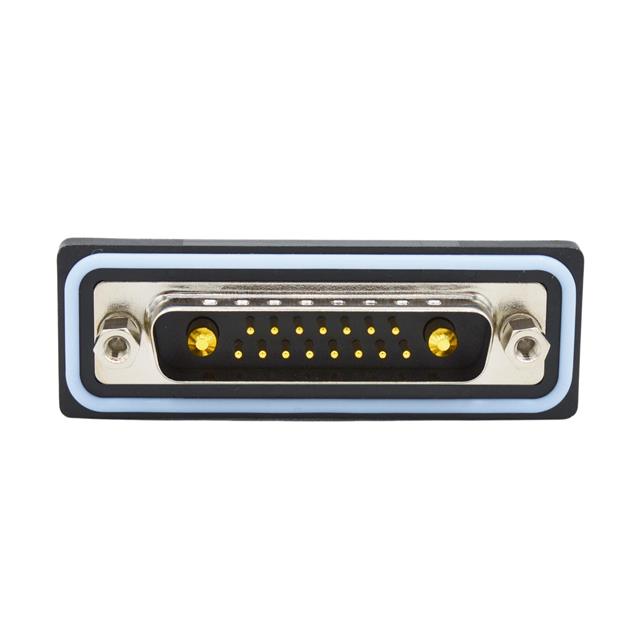

CDFS17W2103L211

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Connector Type :

Plug, Male Pins

Dielectric Material :

Polybutylene Terephthalate (PBT)

Series :

CDF

Number of Positions :

17 (15 + 2 Power)

Voltage Rating :

-

Minimum Operating Temperature :

- 25 C

Contact Form :

Machined

Material Flammability Rating :

UL94 V-0

Connector Style :

D-Sub, Combo

Wire Gauge :

-

Contact Arrangement :

17W2

Product Status :

Active

Termination :

Solder Cup

Features :

Grounding Indents

Number of Contacts :

25

Maximum Operating Temperature :

+ 85 C

Base Product Number :

CDFS17W

Mounting Style :

Panel

Ingress Protection :

IP67 - Dust Tight, Waterproof

Shell Material, Finish :

Steel, Nickel Plated

Packaging :

Tray

Tradename :

NANOOK

Contact Type :

Signal and Power

Filter Type :

-

Flange Feature :

Mating Side, Female Screwlock (4-40)

Mounting Angle :

Straight

Mounting Type :

PCB Mount

Color :

-

Backset Spacing :

-

Shell Material :

Steel

Contact Material :

COPPER ALLOY

Gender :

Male

RoHS :

Details

Pitch :

2.77mm

Current Rating (Amps) :

-

Operating Temperature :

-25°C ~ 85°C

Body Orientation :

Straight

Number of Rows :

2

Shell Size, Connector Layout :

3 (DB, B) - 17W2

Contact Plating :

Gold

Package :

Tray

Insulation Material :

Polybutylene Terephthalate (PBT)

Insulation :

Insulated

Shell Plating :

Nickel

Termination Style :

Solder Cup

Mounting Hardware :

4-40 Screw Locks

Contact Finish :

Gold

Contact Finish Thickness :

Flash
