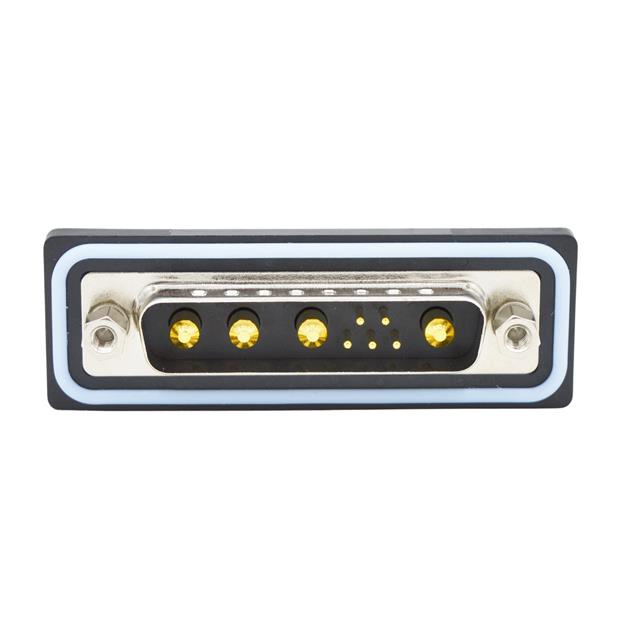

CDFS9W4103L211

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Wire Gauge :

-

Color :

-

Contact Finish Thickness :

Flash

Features :

Grounding Indents

Contact Type :

Signal and Power

Contact Form :

Machined

RoHS :

Details

Dielectric Material :

Polybutylene Terephthalate (PBT)

Contact Plating :

Gold

Filter Type :

-

Contact Arrangement :

9W4

Number of Contacts :

25

Shell Material, Finish :

Steel, Nickel Plated

Shell Material :

Steel

Maximum Operating Temperature :

+ 85 C

Insulation Material :

Polybutylene Terephthalate (PBT)

Mounting Hardware :

4-40 Screw Locks

Number of Positions :

9 (5 + 4 Power)

Voltage Rating :

-

Flange Feature :

Mating Side, Female Screwlock (4-40)

Connector Style :

D-Sub, Combo

Body Orientation :

Straight

Contact Finish :

Gold

Packaging :

Tray

Ingress Protection :

IP67 - Dust Tight, Waterproof

Current Rating (Amps) :

-

Package :

Tray

Pitch :

2.77mm

Shell Plating :

Nickel

Tradename :

NANOOK

Shell Size, Connector Layout :

3 (DB, B) - 9W4

Termination :

Solder Cup

Termination Style :

Solder Cup

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Connector Type :

Plug, Male Pins

Mounting Style :

Panel

Product Status :

Active

Contact Material :

COPPER ALLOY

Backset Spacing :

-

Operating Temperature :

-25°C ~ 85°C

Minimum Operating Temperature :

- 25 C

Insulation :

Insulated

Series :

CDF

Mounting Angle :

Straight

Gender :

Male

Base Product Number :

CDFS9W4

Mounting Type :

PCB Mount
