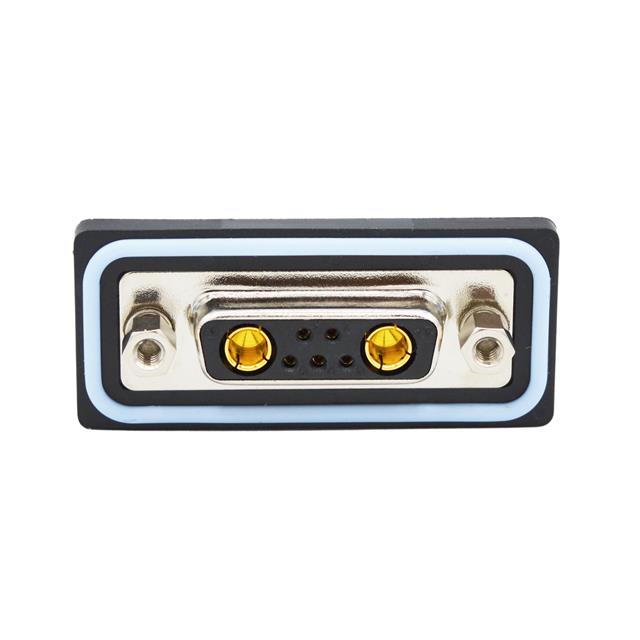

CDFS7W2203L412
Or copy the link below:
- Mfr.Part #
- CDFS7W2203L412
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 7POS PNL MNT
- Stock
- 12,610
- In Stock ：
- 12,610
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Base Product Number :
- CDFS7W2
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Insulation :
- Insulated
- Shell Plating :
- Nickel
- Contact Material :
- COPPER ALLOY
- Termination Style :
- Solder Cup
- Mounting Style :
- Panel
- Features :
- -
- Mounting Type :
- Panel Mount
- Minimum Operating Temperature :
- - 25 C
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Color :
- Black
- Contact Plating :
- Gold
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Package :
- Tray
- Voltage Rating :
- -
- Connector Type :
- Receptacle, Female Sockets
- Mounting Angle :
- Straight
- Number of Positions :
- 7 (5 + 2 Power)
- RoHS :
- Details
- Gender :
- FEMALE
- Connector Style :
- D-Sub, Combo
- Packaging :
- Tray
- Series :
- CDFS
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -25°C ~ 85°C
- Shell Material, Finish :
- Steel, Nickel Plated
- Contact Type :
- Signal and Power
- Shell Material :
- Steel
- Tradename :
- NANOOK
- Current Rating (Amps) :
- 5A, 40A
- Termination :
- Solder Cup
- Contact Arrangement :
- 7W2
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Product Status :
- Active
- Backset Spacing :
- -
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Wire Gauge :
- -
- Maximum Operating Temperature :
- + 85 C
- Contact Form :
- Machined
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Number of Rows :
- 2
- Filter Type :
- -
- Datasheets
- CDFS7W2203L412
CDFS7W2203L412 Documents
CDFS Series D-Sub, Combo Receptacle, Female Sockets 7 (5 + 2 Power)-Position Female Signal and Power Solder Cup 2 (DA, A) - 7W2 Panel Mount Copper Alloy Gold Steel, Nickel Plated
CDFS7W2203L412 Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Panel Mount.Packaging is performed using a Tray case.It is part of the CDFS Series of products.There is no operating temperature for the device.
CDFS7W2203L412 Features
CDFS series
CDFS7W2203L412 Applications
There are a lot of NorComp
CDFS7W2203L412 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
