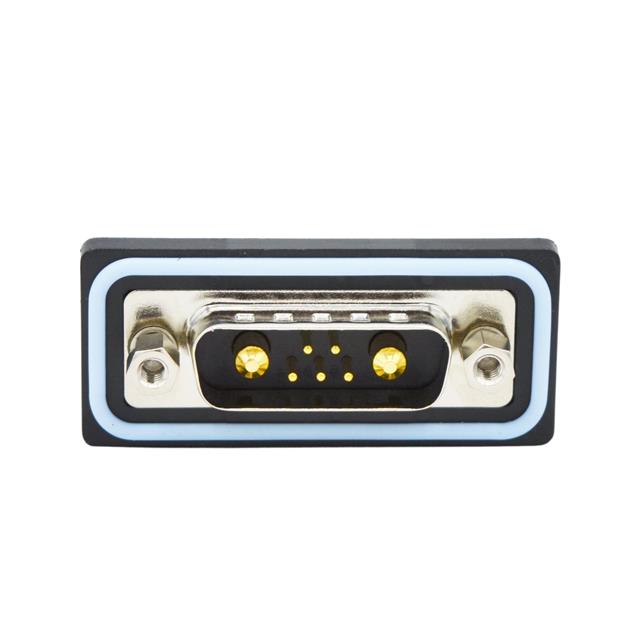

CDFS7W2103L412
Or copy the link below:
- Mfr.Part #
- CDFS7W2103L412
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 7POS PNL MNT
- Stock
- 8,128
- In Stock ：
- 8,128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Termination Style :
- Solder Cup
- Voltage Rating :
- -
- Current Rating (Amps) :
- 5A, 40A
- Contact Arrangement :
- 7W2
- Backset Spacing :
- -
- Features :
- Grounding Indents
- Contact Plating :
- Gold
- Package :
- Tray
- Minimum Operating Temperature :
- - 25 C
- Color :
- Black
- Base Product Number :
- CDFS7W2
- Contact Form :
- Machined
- RoHS :
- Details
- Number of Positions :
- 7 (5 + 2 Power)
- Mounting Angle :
- Straight
- Number of Rows :
- 2
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Termination :
- Solder Cup
- Connector Style :
- D-Sub, Combo
- Maximum Operating Temperature :
- + 85 C
- Shell Material :
- Steel
- Insulation :
- Insulated
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Connector Type :
- Plug, Male Pins
- Packaging :
- Tray
- Tradename :
- NANOOK
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Operating Temperature :
- -25°C ~ 85°C
- Gender :
- Male
- Product Status :
- Active
- Shell Plating :
- Nickel
- Filter Type :
- -
- Mounting Style :
- Panel
- Mounting Type :
- Panel Mount
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Series :
- CDFS
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Signal and Power
- Material Flammability Rating :
- UL94 V-0
- Shell Material, Finish :
- Steel, Nickel Plated
- Wire Gauge :
- -
- Contact Finish :
- Gold
- Datasheets
- CDFS7W2103L412
CDFS7W2103L412 Documents
CDFS Series D-Sub, Combo Plug, Male Pins 7 (5 + 2 Power)-Position Male Signal and Power Solder Cup 2 (DA, A) - 7W2 Panel Mount Copper Alloy Gold Steel, Nickel Plated
CDFS7W2103L412 Overview
The product is packaged in Plug, Male Pins.Panel Mount is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the CDFS Series, it can be found in this category.The device is operating at -25°C ~ 85°C Operating Temperature.
CDFS7W2103L412 Features
CDFS series
CDFS7W2103L412 Applications
There are a lot of NorComp
CDFS7W2103L412 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
