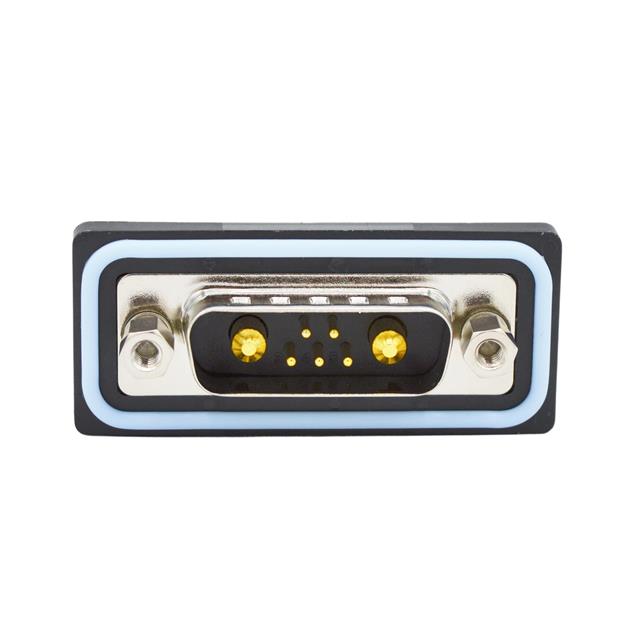

CDFS7W2103L211
Or copy the link below:
- Mfr.Part #
- CDFS7W2103L211
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 7POS PNL MNT
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Contact Material :
- COPPER ALLOY
- RoHS :
- Details
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Operating Temperature :
- -25°C ~ 85°C
- Package :
- Tray
- Shell Plating :
- Nickel
- Maximum Operating Temperature :
- + 85 C
- Mounting Angle :
- Straight
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Mounting Type :
- Panel Mount
- Mounting Style :
- Panel
- Voltage Rating :
- -
- Contact Plating :
- Gold
- Shell Material :
- Steel
- Backset Spacing :
- -
- Gender :
- Male
- Packaging :
- Tray
- Connector Style :
- D-Sub, Combo
- Contact Arrangement :
- 7W2
- Insulation :
- Insulated
- Current Rating (Amps) :
- 5A, 20A
- Number of Rows :
- 2
- Number of Contacts :
- 7
- Number of Positions :
- 7 (5 + 2 Power)
- Series :
- CDF
- Base Product Number :
- CDFS7W2
- Mounting Hardware :
- 4-40 Screw Locks
- Features :
- Grounding Indents
- Contact Type :
- 5 Signal, 2 Power
- Contact Finish :
- Gold
- Termination :
- Solder Cup
- Termination Style :
- Solder Cup
- Color :
- Black
- Shell Material, Finish :
- Steel, Nickel Plated
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Pitch :
- 2.77mm
- Contact Form :
- Machined
- Tradename :
- NANOOK
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Filter Type :
- -
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Minimum Operating Temperature :
- - 25 C
- Wire Gauge :
- -
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- Flash
- Product Status :
- Active
- Body Orientation :
- Straight
- Connector Type :
- Plug, Male Pins
- Datasheets
- CDFS7W2103L211
CDFS7W2103L211 Documents
CDF Series D-Sub, Combo Plug, Male Pins 7 (5 + 2 Power)-Position Male 5 Signal, 2 Power Solder Cup 2 (DA, A) - 7W2 Panel Mount Copper Alloy Gold Steel, Nickel Plated
CDFS7W2103L211 Overview
The packaging contains Plug, Male Pins.This device is mounted in the Panel Mount position.It has been determined that a Tray case is necessary to package the product.There is a product in the CDF Series.As a result, the device runs at -25°C ~ 85°C Operating Temperature.
CDFS7W2103L211 Features
CDF series
CDFS7W2103L211 Applications
There are a lot of NorComp
CDFS7W2103L211 D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
