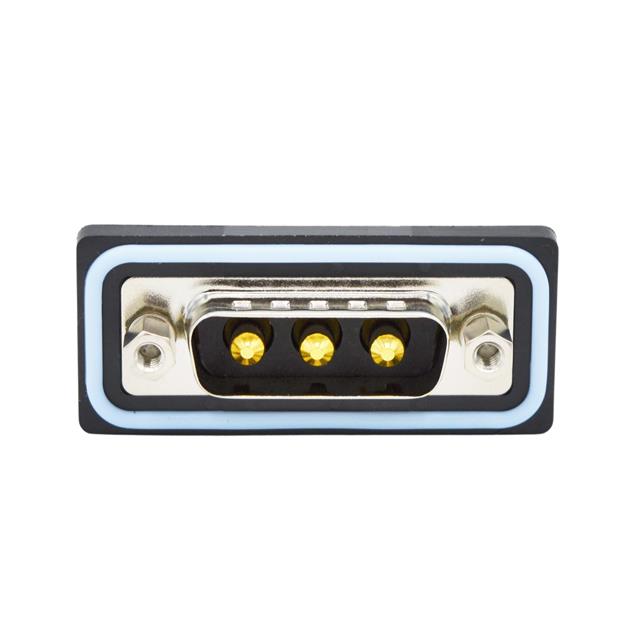

CDFS3W3103L412
Or copy the link below:
- Mfr.Part #
- CDFS3W3103L412
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 3POS PNL MNT
- Stock
- 45,786
- In Stock ：
- 45,786
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Package :
- Tray
- Color :
- Black
- Current Rating (Amps) :
- 5A, 20A
- Mounting Angle :
- Straight
- Backset Spacing :
- -
- Material Flammability Rating :
- UL94 V-0
- Connector Style :
- D-Sub, Combo
- Features :
- Grounding Indents
- Contact Finish :
- Gold
- Filter Type :
- -
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Shell Material, Finish :
- Steel, Nickel Plated
- Maximum Operating Temperature :
- + 85 C
- Contact Plating :
- Gold
- Wire Gauge :
- -
- Contact Type :
- Power
- Minimum Operating Temperature :
- - 25 C
- Shell Material :
- Steel
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Termination :
- Solder Cup
- Number of Positions :
- 3 (Power)
- Packaging :
- Tray
- Mounting Type :
- Panel Mount
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 1
- Contact Form :
- Machined
- Shell Plating :
- Nickel
- Contact Arrangement :
- 3W3
- Mounting Style :
- Panel
- RoHS :
- Details
- Product Status :
- Active
- Voltage Rating :
- -
- Insulation :
- Insulated
- Tradename :
- NANOOK
- Gender :
- Male
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Connector Type :
- Plug, Male Pins
- Base Product Number :
- CDFS3W3
- Series :
- CDFS
- Termination Style :
- Solder Cup
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Shell Size, Connector Layout :
- 2 (DA, A) - 3W3
- Operating Temperature :
- -25°C ~ 85°C
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Datasheets
- CDFS3W3103L412
CDFS3W3103L412 Documents
CDFS Series D-Sub, Combo Plug, Male Pins 3 (Power)-Position Male Power Solder Cup 2 (DA, A) - 3W3 Panel Mount Copper Alloy Gold Steel, Nickel Plated
CDFS3W3103L412 Overview
This product is packaged in a Plug, Male Pins box.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Tray.Product number CDFS belongs to the CDFS Series.This device operates at a temperature of -25°C ~ 85°C.
CDFS3W3103L412 Features
CDFS series
CDFS3W3103L412 Applications
There are a lot of NorComp
CDFS3W3103L412 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
