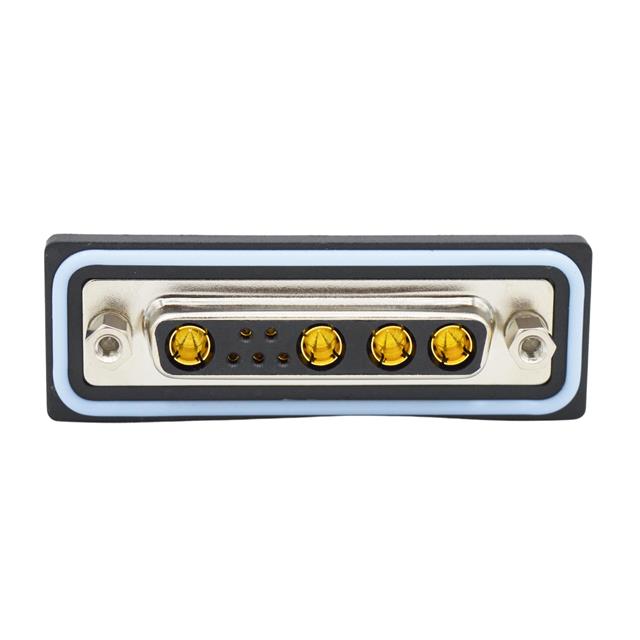

CDFR9W4213L211

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Insulation :

Insulated

Flange Feature :

Mating Side, Female Screwlock (4-40)

Product Status :

Active

Termination Style :

Solder Pin

Insulation Material :

Polybutylene Terephthalate (PBT)

Gender :

FEMALE

Contact Finish Thickness :

Flash

Contact Finish :

Gold

Number of Positions :

9 Position

Base Product Number :

CDFR9W4

Number of Rows :

2

RoHS :

Details

Contact Plating :

Gold

Contact Arrangement :

9W4

Mounting Angle :

RIGHT ANGLE

Shell Size, Connector Layout :

3 (DB, B) - 9W4

Contact Form :

Machined

Backset Spacing :

-

Shell Material, Finish :

Steel, Nickel Plated

Ingress Protection :

IP67 - Dust Tight, Waterproof

Tradename :

NANOOK

Mounting Style :

Panel

Voltage Rating :

-

Minimum Operating Temperature :

- 25 C

Material Flammability Rating :

UL94 V-0

Mounting Type :

PCB Mount

Current Rating (Amps) :

-

Packaging :

Tray

Package :

Tray

Shell Material :

Steel

Operating Temperature :

-25°C ~ 85°C

Termination :

Solder

Connector Style :

D-Sub, Combo

Features :

-

Maximum Operating Temperature :

+ 85 C

Pitch :

2.77mm

Shell Plating :

Nickel

Dielectric Material :

Polybutylene Terephthalate (PBT)

Filter Type :

-

Connector Type :

Receptacle, Female Sockets

Contact Type :

5 Signal, 4 Power

Body Orientation :

RIGHT ANGLE

Color :

-

Wire Gauge :

-

Series :

CDFR

Contact Material :

COPPER ALLOY

Mounting Hardware :

4-40 Screw Locks

Number of Contacts :

25
