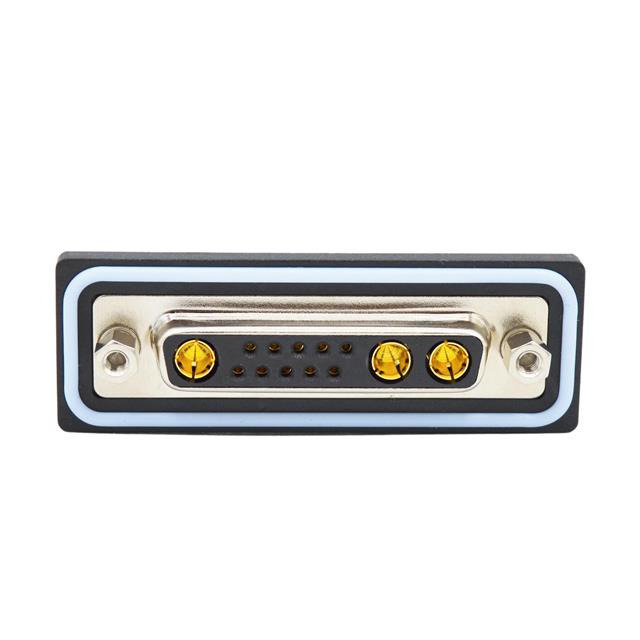

CDFR13W3213L212

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Package :

Tray

Minimum Operating Temperature :

- 25 C

Features :

-

Voltage Rating :

1 kV

Mounting Type :

Panel Mount, Through Hole, Right Angle

Contact Form :

Machined

Contact Arrangement :

13W3

Shell Material :

Steel

Dielectric Material :

Polybutylene Terephthalate (PBT)

Shell Size, Connector Layout :

3 (DB, B) - 13C3, 13W3

Connector Style :

D-Sub, Combo

Tradename :

NANOOK

Wire Gauge :

-

Shell Plating :

Nickel

Contact Material :

COPPER ALLOY

Mounting Angle :

RIGHT ANGLE

Product Status :

Active

Base Product Number :

CDFR13W

Mounting Style :

Panel

RoHS :

Details

Operating Temperature :

-25°C ~ 85°C

Contact Finish :

Gold

Packaging :

Tray

Termination Style :

Solder Pin

Termination :

Solder

Number of Rows :

1 Row

Material Flammability Rating :

UL94 V-0

Number of Positions :

13 Position

Series :

CDFR

Ingress Protection :

IP67 - Dust Tight, Waterproof

Gender :

FEMALE

Filter Type :

-

IP Rating :

IP67

Backset Spacing :

-

Shell Material, Finish :

Steel, Nickel Plated

Contact Finish Thickness :

30.0µin (0.76µm)

Current Rating (Amps) :

-

Insulation :

Insulated

Connector Type :

Receptacle, Female Sockets

Maximum Operating Temperature :

+ 85 C

Flange Feature :

Mating Side, Female Screwlock (4-40)

Color :

-

Contact Plating :

Gold

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Type :

Signal and Power
