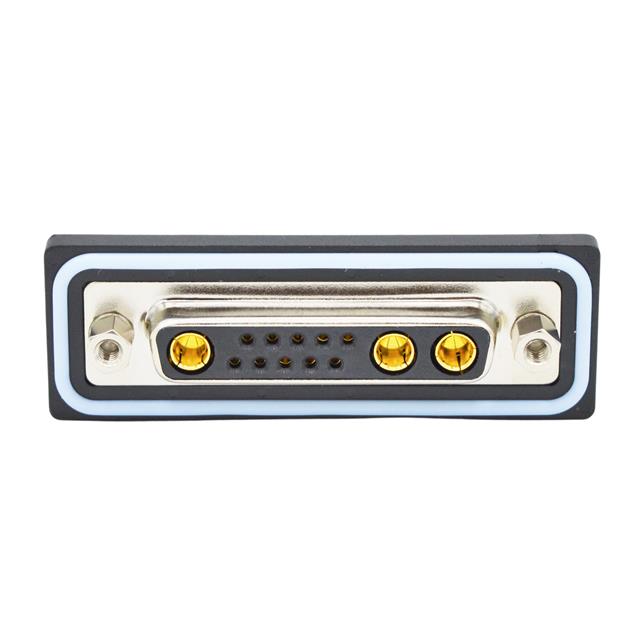

CDFR13W3213L461
Or copy the link below:
- Mfr.Part #
- CDFR13W3213L461
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 13POS R/A SLDR
- Stock
- 36
- In Stock ：
- 36
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Body Orientation :
- RIGHT ANGLE
- Mounting Style :
- Panel
- Voltage Rating :
- 1 kV
- Shell Plating :
- Nickel
- Termination Style :
- Solder Pin
- Product Status :
- Active
- Mounting Angle :
- RIGHT ANGLE
- Current Rating (Amps) :
- -
- Color :
- -
- Wire Gauge :
- -
- Contact Finish Thickness :
- Flash
- Gender :
- FEMALE
- Base Product Number :
- CDFR13W
- Termination :
- Solder
- Tradename :
- NANOOK
- Packaging :
- Tray
- Pitch :
- 2.77mm
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Insulation :
- Insulated
- Shell Material, Finish :
- Steel, Nickel Plated
- Contact Plating :
- Gold
- Contact Material :
- COPPER ALLOY
- Package :
- Tray
- Operating Temperature :
- -25°C ~ 85°C
- Maximum Operating Temperature :
- + 85 C
- Number of Positions :
- 13 Position
- Material Flammability Rating :
- UL94 V-0
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Number of Contacts :
- 25
- Mounting Type :
- PCB Mount
- Contact Form :
- Machined
- IP Rating :
- IP67
- Contact Arrangement :
- 13W3
- Minimum Operating Temperature :
- - 25 C
- Connector Type :
- Receptacle, Female Sockets
- Series :
- CDFR
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Mounting Hardware :
- 4-40 Boardlocks
- Shell Material :
- Steel
- Filter Type :
- -
- RoHS :
- Details
- Contact Type :
- Signal and Power
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Features :
- Board Lock, Mounting Brackets
- Number of Rows :
- 1 Row
- Shell Size, Connector Layout :
- 3 (DB, B) - 13C3, 13W3
- Contact Finish :
- Gold
- Connector Style :
- D-Sub, Combo
- Backset Spacing :
- -
- Datasheets
- CDFR13W3213L461
CDFR Series D-Sub, Combo Receptacle, Female Sockets 13 Position-Position Female Signal and Power Solder 3 (DB, B) - 13C3, 13W3 PCB Mount Copper Alloy Gold Steel, Nickel Plated
CDFR13W3213L461 Overview
It comes in a Receptacle, Female Sockets package.Mounting type is PCB Mount.To package the product, we use a Tray case.This product is from the CDFR Series.Device runs at -25°C ~ 85°C Operating Temperature.
CDFR13W3213L461 Features
CDFR series
CDFR13W3213L461 Applications
There are a lot of NorComp
CDFR13W3213L461 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
