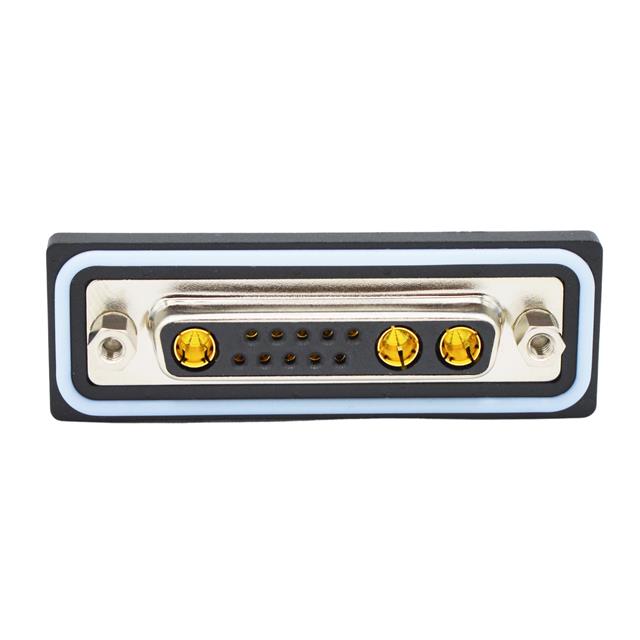

CDFR13W3213L261

Share

Or copy the link below:

Mfr.Part #
CDFR13W3213L261
Manufacturer
NorComp
Package / Case
Datasheet
Download
Description
CONN D-SUB RCPT 13POS R/A SLDR
Stock
36
In Stock :
36

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
NorComp
Product Category :
D-Sub Connector Assemblies
Body Orientation :
RIGHT ANGLE
Termination :
Solder
Wire Gauge :
-
Tradename :
NANOOK
Shell Plating :
Nickel
Termination Style :
Solder Pin
Minimum Operating Temperature :
- 25 C
Shell Material :
Steel
Maximum Operating Temperature :
+ 85 C
Packaging :
Tray
Backset Spacing :
-
Contact Type :
10 Signal, 3 Power
Mounting Hardware :
4-40 Boardlocks
Connector Style :
D-Sub, Combo
Package :
Tray
Operating Temperature :
-25°C ~ 85°C
Voltage Rating :
1 kV
Color :
-
Contact Arrangement :
13W3
Filter Type :
-
Pitch :
2.77mm
Insulation Material :
Polybutylene Terephthalate (PBT)
Contact Plating :
Gold
Number of Positions :
13 Position
Series :
CDFR
Dielectric Material :
Polybutylene Terephthalate (PBT)
Contact Finish :
Gold
Number of Rows :
1 Row
RoHS :
Details
Mounting Style :
Panel
Material Flammability Rating :
UL94 V-0
Insulation :
Insulated
Base Product Number :
CDFR13W
Shell Size, Connector Layout :
3 (DB, B) - 13C3, 13W3
Gender :
FEMALE
Product Status :
Active
Mounting Angle :
RIGHT ANGLE
Ingress Protection :
IP67 - Dust Tight, Waterproof
Features :
Board Lock, Mounting Brackets
Contact Form :
Machined
Contact Finish Thickness :
Flash
Number of Contacts :
25
Mounting Type :
PCB Mount
Current Rating (Amps) :
-
Connector Type :
Receptacle, Female Sockets
Contact Material :
COPPER ALLOY
IP Rating :
IP67
Flange Feature :
Mating Side, Female Screwlock (4-40)
Shell Material, Finish :
Steel, Nickel Plated
Datasheets
CDFR13W3213L261
Introducing D-Sub Connector Assemblies NorComp CDFR13W3213L261 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-25°C ~ 85°C, Mounting Type:PCB Mount, CDFR13W3213L261 pinout, CDFR13W3213L261 datasheet PDF, CDFR13W3213L261 amp .Beyond D-Sub Connector Assemblies NorComp CDFR13W3213L261 ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

NorComp CDFR13W3213L261


CDFR Series D-Sub, Combo Receptacle, Female Sockets 13 Position-Position Female 10 Signal, 3 Power Solder 3 (DB, B) - 13C3, 13W3 PCB Mount Copper Alloy Gold Steel, Nickel Plated

CDFR13W3213L261 Overview


The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is PCB Mount.In order to package the product, a Tray case is used.It belongs to the CDFR Series of products.The device runs in -25°C ~ 85°C Operating Temperature.

CDFR13W3213L261 Features


CDFR series


CDFR13W3213L261 Applications


There are a lot of NorComp
CDFR13W3213L261 D-Sub Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
