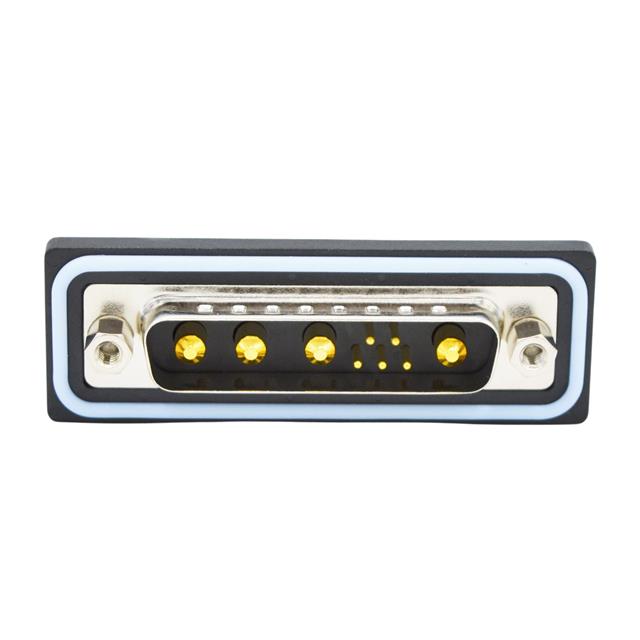

CDFR9W4113L461

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Connector Type :

Plug, Male Pins

Insulation :

Insulated

Maximum Operating Temperature :

+ 85 C

Pitch :

2.77mm

Connector Style :

D-Sub, Combo

Dielectric Material :

Polybutylene Terephthalate (PBT)

Contact Plating :

Gold

Voltage Rating :

-

Contact Form :

Machined

Termination Style :

Solder Pin

Mounting Type :

PCB Mount

Series :

CDFR

Product Status :

Active

Color :

-

Base Product Number :

CDFR9W4

Features :

Board Lock, Grounding Indents, Mounting Brackets

Mounting Style :

Panel

Contact Finish Thickness :

Flash

Tradename :

NANOOK

Ingress Protection :

IP67 - Dust Tight, Waterproof

Operating Temperature :

-25°C ~ 85°C

Contact Finish :

Gold

Flange Feature :

Mating Side, Female Screwlock (4-40)

Material Flammability Rating :

UL94 V-0

Backset Spacing :

-

Shell Plating :

Nickel

Insulation Material :

Polybutylene Terephthalate (PBT)

Filter Type :

-

Termination :

Solder

Package :

Tray

Gender :

Male

Packaging :

Tray

Shell Material :

Steel

Body Orientation :

RIGHT ANGLE

Shell Material, Finish :

Steel, Nickel Plated

Number of Rows :

2

Number of Contacts :

25

Minimum Operating Temperature :

- 25 C

RoHS :

Details

Contact Type :

5 Signal, 4 Power

Contact Arrangement :

9W4

Number of Positions :

9 Position

Shell Size, Connector Layout :

3 (DB, B) - 9W4

Contact Material :

COPPER ALLOY

Current Rating (Amps) :

-

Mounting Hardware :

4-40 Boardlocks

Mounting Angle :

RIGHT ANGLE

Wire Gauge :

-
