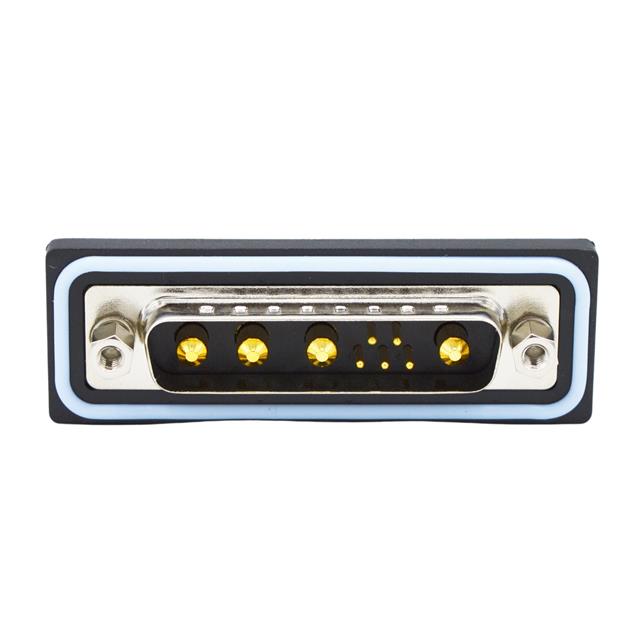

CDFR9W4113L411

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Material Flammability Rating :

UL94 V-0

Mounting Angle :

RIGHT ANGLE

Shell Size, Connector Layout :

3 (DB, B) - 9W4

Packaging :

Tray

Minimum Operating Temperature :

- 25 C

Maximum Operating Temperature :

+ 85 C

Number of Contacts :

25

Shell Material :

Steel

Number of Positions :

9 Position

Ingress Protection :

IP67 - Dust Tight, Waterproof

Product Status :

Active

Contact Arrangement :

9W4

Mounting Style :

Panel

Current Rating (Amps) :

-

Operating Temperature :

-25°C ~ 85°C

Mounting Hardware :

4-40 Screw Locks

Shell Material, Finish :

Steel, Nickel Plated

Connector Style :

D-Sub, Combo

Gender :

Male

Color :

-

Base Product Number :

CDFR9W4

Wire Gauge :

-

Termination :

Solder

Shell Plating :

Nickel

Contact Finish :

Gold

Contact Type :

5 Signal, 4 Power

Tradename :

NANOOK

Insulation Material :

Polybutylene Terephthalate (PBT)

Number of Rows :

2

Package :

Tray

Mounting Type :

PCB Mount

Connector Type :

Plug, Male Pins

Contact Form :

Machined

Pitch :

2.77mm

Contact Plating :

Gold

Contact Finish Thickness :

Flash

Filter Type :

-

Termination Style :

Solder Pin

Dielectric Material :

Polybutylene Terephthalate (PBT)

Body Orientation :

RIGHT ANGLE

Contact Material :

COPPER ALLOY

Backset Spacing :

-

Series :

CDFR

RoHS :

Details

Voltage Rating :

-

Flange Feature :

Mating Side, Female Screwlock (4-40)

Features :

Grounding Indents

Insulation :

Insulated
