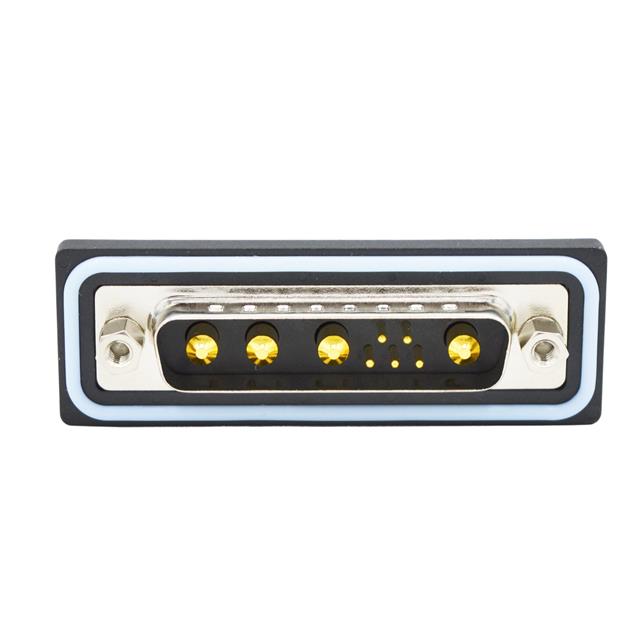

CDFR9W4113L261

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Tradename :

NANOOK

Voltage Rating :

-

Current Rating (Amps) :

-

Backset Spacing :

-

Contact Finish :

Gold

Wire Gauge :

-

Operating Temperature :

-25°C ~ 85°C

Number of Contacts :

25

Contact Finish Thickness :

Flash

Mounting Hardware :

4-40 Boardlocks

Connector Style :

D-Sub, Combo

Color :

-

Shell Plating :

Nickel

Contact Plating :

Gold

Contact Type :

5 Signal, 4 Power

Product Status :

Active

Connector Type :

Plug, Male Pins

Dielectric Material :

Polybutylene Terephthalate (PBT)

Pitch :

2.77mm

Minimum Operating Temperature :

- 25 C

Base Product Number :

CDFR9W4

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Gender :

Male

Packaging :

Tray

Termination :

Solder

Maximum Operating Temperature :

+ 85 C

Termination Style :

Solder Pin

Features :

Board Lock, Grounding Indents, Mounting Brackets

Shell Size, Connector Layout :

3 (DB, B) - 9W4

Contact Arrangement :

9W4

Filter Type :

-

Insulation :

Insulated

RoHS :

Details

Shell Material :

Steel

Ingress Protection :

IP67 - Dust Tight, Waterproof

Contact Material :

COPPER ALLOY

Number of Positions :

9 Position

Contact Form :

Machined

Mounting Type :

PCB Mount

Series :

CDFR

Mounting Style :

Panel

Flange Feature :

Mating Side, Female Screwlock (4-40)

Package :

Tray

Insulation Material :

Polybutylene Terephthalate (PBT)

Body Orientation :

RIGHT ANGLE

Shell Material, Finish :

Steel, Nickel Plated

Mounting Angle :

RIGHT ANGLE
