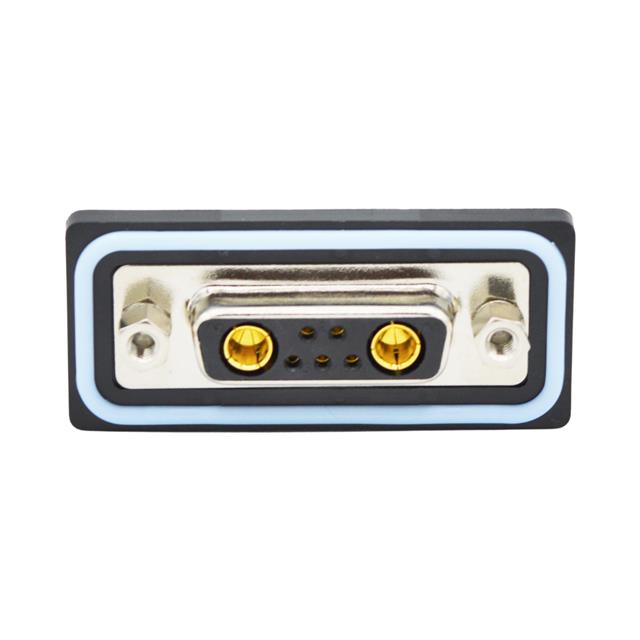

CDFR7W2213L461
Or copy the link below:
- Mfr.Part #
- CDFR7W2213L461
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 7POS R/A SLDR
- Stock
- 45
- In Stock ：
- 45
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Contact Arrangement :
- 7W2
- Contact Type :
- 5 Signal, 2 Power
- Package :
- Tray
- Filter Type :
- -
- Shell Material, Finish :
- Steel, Nickel Plated
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Series :
- CDFR
- Number of Positions :
- 7 Position
- Color :
- Black
- Shell Plating :
- Nickel
- Minimum Operating Temperature :
- - 25 C
- Body Orientation :
- RIGHT ANGLE
- Base Product Number :
- CDFR7W2
- Mounting Angle :
- RIGHT ANGLE
- Connector Style :
- D-Sub, Combo
- Contact Material :
- COPPER ALLOY
- Backset Spacing :
- -
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Mounting Style :
- Panel
- RoHS :
- Details
- Number of Rows :
- 2
- Contact Form :
- Machined
- Pitch :
- 2.77mm
- Voltage Rating :
- -
- Gender :
- FEMALE
- Operating Temperature :
- -25°C ~ 85°C
- Contact Finish Thickness :
- Flash
- Current Rating (Amps) :
- 5A, 40A
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Insulation :
- Insulated
- Termination :
- Solder
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Termination Style :
- Solder Pin
- Connector Type :
- Receptacle, Female Sockets
- Mounting Hardware :
- 4-40 Boardlocks
- Product Status :
- Active
- Mounting Type :
- PCB Mount
- Number of Contacts :
- 15
- Packaging :
- Tray
- Wire Gauge :
- -
- Contact Plating :
- Gold
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Shell Material :
- Steel
- Maximum Operating Temperature :
- + 85 C
- Features :
- Board Lock, Mounting Brackets
- Tradename :
- NANOOK
- Contact Finish :
- Gold
- Datasheets
- CDFR7W2213L461
CDFR7W2213L461 Documents
CDFR Series D-Sub, Combo Receptacle, Female Sockets 7 Position-Position Female 5 Signal, 2 Power Solder 2 (DA, A) - 7W2 PCB Mount Copper Alloy Gold Steel, Nickel Plated
CDFR7W2213L461 Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is PCB Mount.Packaging is performed using a Tray case.It is part of the CDFR Series of products.There is no operating temperature for the device.
CDFR7W2213L461 Features
CDFR series
CDFR7W2213L461 Applications
There are a lot of NorComp
CDFR7W2213L461 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
