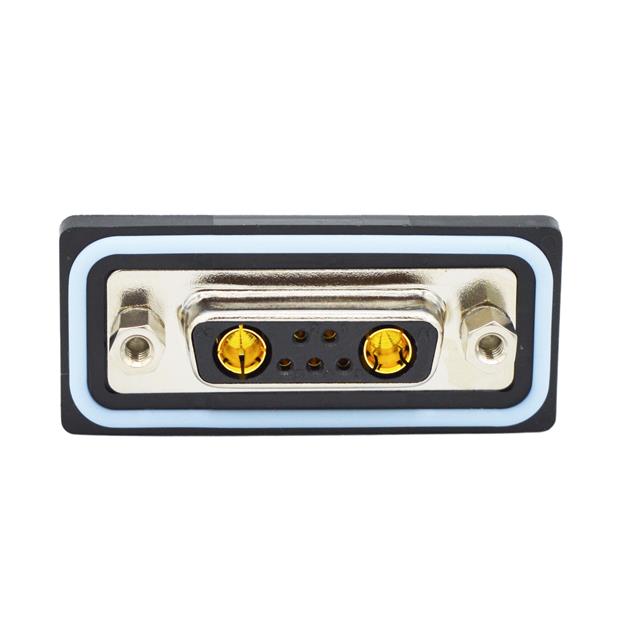

CDFR7W2213L261
Or copy the link below:
- Mfr.Part #
- CDFR7W2213L261
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 7POS R/A SLDR
- Stock
- 94
- In Stock ：
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Number of Rows :
- 2
- Connector Style :
- D-Sub, Combo
- Mounting Type :
- PCB Mount
- Number of Positions :
- 7 Position
- Shell Material :
- Steel
- Contact Arrangement :
- 7W2
- Insulation :
- Insulated
- Packaging :
- Tray
- Body Orientation :
- RIGHT ANGLE
- Termination :
- Solder
- Contact Plating :
- Gold
- Wire Gauge :
- -
- Contact Form :
- Machined
- Operating Temperature :
- -25°C ~ 85°C
- Contact Type :
- 5 Signal, 2 Power
- Contact Finish Thickness :
- Flash
- Color :
- Black
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Mounting Hardware :
- 4-40 Boardlocks
- Features :
- Board Lock, Mounting Brackets
- RoHS :
- Details
- Mounting Style :
- Panel
- Tradename :
- NANOOK
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Mounting Angle :
- RIGHT ANGLE
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Current Rating (Amps) :
- 5A, 20A
- Minimum Operating Temperature :
- - 25 C
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 2.77mm
- Package :
- Tray
- Voltage Rating :
- -
- Shell Plating :
- Nickel
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Receptacle, Female Sockets
- Maximum Operating Temperature :
- + 85 C
- Number of Contacts :
- 15
- Base Product Number :
- CDFR7W2
- Backset Spacing :
- -
- Series :
- CDFR
- Gender :
- FEMALE
- Termination Style :
- Solder Pin
- Contact Finish :
- Gold
- Shell Material, Finish :
- Steel, Nickel Plated
- Product Status :
- Active
- Filter Type :
- -
- Datasheets
- CDFR7W2213L261
CDFR7W2213L261 Documents
CDFR Series D-Sub, Combo Receptacle, Female Sockets 7 Position-Position Female 5 Signal, 2 Power Solder 2 (DA, A) - 7W2 PCB Mount Copper Alloy Gold Steel, Nickel Plated
CDFR7W2213L261 Overview
Packaging is Receptacle, Female Sockets.This device has a PCB Mount mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the CDFR Series.Devices operate at -25°C ~ 85°C operating temperatures.
CDFR7W2213L261 Features
CDFR series
CDFR7W2213L261 Applications
There are a lot of NorComp
CDFR7W2213L261 D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
