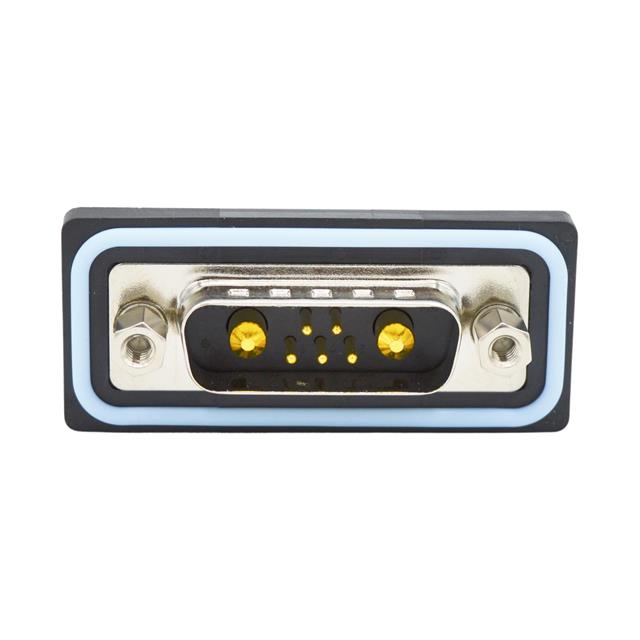

CDFR7W2113L212
Or copy the link below:
- Mfr.Part #
- CDFR7W2113L212
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 7POS R/A SLDR
- Stock
- 49,271
- In Stock ：
- 49,271
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- D-Sub Connector Assemblies
- Shell Plating :
- Nickel
- Maximum Operating Temperature :
- + 85 C
- Wire Gauge :
- -
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Minimum Operating Temperature :
- - 25 C
- Packaging :
- Tray
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 7 Position
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Operating Temperature :
- -25°C ~ 85°C
- Gender :
- Male
- Mounting Angle :
- RIGHT ANGLE
- Mounting Style :
- Panel
- Contact Arrangement :
- 7W2
- Connector Style :
- D-Sub, Combo
- Termination :
- Solder
- Features :
- Grounding Indents
- RoHS :
- Details
- Contact Finish :
- Gold
- Backset Spacing :
- -
- Number of Rows :
- 2
- Contact Type :
- Signal and Power
- Contact Plating :
- Gold
- Voltage Rating :
- -
- Connector Type :
- Plug, Male Pins
- Termination Style :
- Solder Pin
- Shell Material :
- Steel
- Tradename :
- NANOOK
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Shell Size, Connector Layout :
- 2 (DA, A) - 7W2
- Package :
- Tray
- Base Product Number :
- CDFR7W2
- Filter Type :
- -
- Current Rating (Amps) :
- 5A, 20A
- Series :
- CDFR
- Shell Material, Finish :
- Steel, Nickel Plated
- Insulation :
- Insulated
- Contact Form :
- Machined
- Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Product Status :
- Active
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Datasheets
- CDFR7W2113L212
CDFR7W2113L212 Documents
CDFR Series D-Sub, Combo Plug, Male Pins 7 Position-Position Male Signal and Power Solder 2 (DA, A) - 7W2 Panel Mount, Through Hole, Right Angle Copper Alloy Gold Steel, Nickel Plated
CDFR7W2113L212 Overview
The product is packaged in Plug, Male Pins.Panel Mount, Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the CDFR Series, it can be found in this category.The device is operating at -25°C ~ 85°C Operating Temperature.
CDFR7W2113L212 Features
CDFR series
CDFR7W2113L212 Applications
There are a lot of NorComp
CDFR7W2113L212 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
