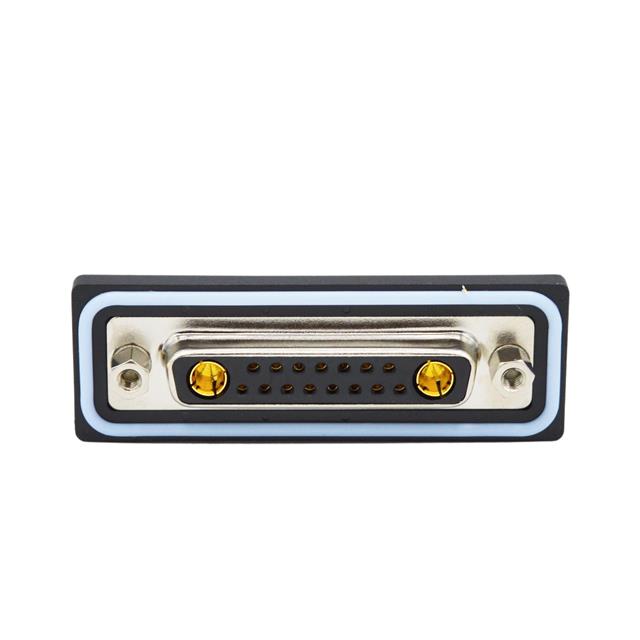

CDFR17W2213L261

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Contact Finish Thickness :

Flash

Package :

Tray

Number of Rows :

2

Shell Plating :

Nickel

Backset Spacing :

-

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Mounting Hardware :

4-40 Boardlocks

Maximum Operating Temperature :

+ 85 C

Dielectric Material :

Polybutylene Terephthalate (PBT)

Minimum Operating Temperature :

- 25 C

Insulation Material :

Polybutylene Terephthalate (PBT)

Color :

-

Insulation :

Insulated

Contact Form :

Machined

Contact Material :

COPPER ALLOY

Termination :

Solder

Contact Arrangement :

17W2

Shell Material, Finish :

Steel, Nickel Plated

Flange Feature :

Mating Side, Female Screwlock (4-40)

Wire Gauge :

-

Connector Type :

Receptacle, Female Sockets

Features :

Board Lock, Mounting Brackets

Tradename :

NANOOK

Current Rating (Amps) :

-

Shell Material :

Steel

Base Product Number :

CDFR17W

Operating Temperature :

-25°C ~ 85°C

Gender :

FEMALE

Mounting Style :

Panel

Voltage Rating :

-

Contact Finish :

Gold

Connector Style :

D-Sub, Combo

Mounting Type :

PCB Mount

Series :

CDFR

Number of Positions :

17 Position

Shell Size, Connector Layout :

3 (DB, B) - 17W2

Termination Style :

Solder Pin

Pitch :

2.77mm

Body Orientation :

RIGHT ANGLE

Number of Contacts :

25

Filter Type :

-

RoHS :

Details

Mounting Angle :

RIGHT ANGLE

Packaging :

Tray

Contact Plating :

Gold

Ingress Protection :

IP67 - Dust Tight, Waterproof

Contact Type :

15 Signal, 2 Power
