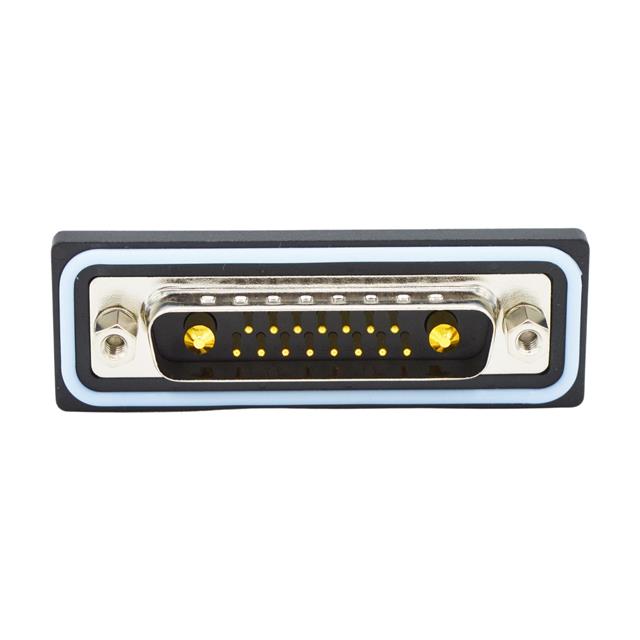

CDFR17W2113L261

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Tradename :

NANOOK

Contact Form :

Machined

Termination :

Solder

Contact Finish :

Gold

Base Product Number :

CDFR17W

Mounting Style :

Panel

Contact Material :

COPPER ALLOY

Maximum Operating Temperature :

+ 85 C

RoHS :

Details

Mounting Angle :

RIGHT ANGLE

Package :

Tray

Ingress Protection :

IP67 - Dust Tight, Waterproof

Shell Size, Connector Layout :

3 (DB, B) - 17W2

Packaging :

Tray

Number of Contacts :

25

Mounting Type :

PCB Mount

Pitch :

2.77mm

Dielectric Material :

Polybutylene Terephthalate (PBT)

Contact Finish Thickness :

Flash

Wire Gauge :

-

Contact Plating :

Gold

Connector Type :

Plug, Male Pins

Series :

CDFR

Number of Positions :

17 Position

Flange Feature :

Mating Side, Female Screwlock (4-40)

Voltage Rating :

-

Contact Arrangement :

17W2

Material Flammability Rating :

UL94 V-0

Shell Plating :

Nickel

Operating Temperature :

-25°C ~ 85°C

Features :

Board Lock, Grounding Indents, Mounting Brackets

Filter Type :

-

Insulation :

Insulated

Color :

-

Number of Rows :

2

Insulation Material :

Polybutylene Terephthalate (PBT)

Shell Material, Finish :

Steel, Nickel Plated

Mounting Hardware :

4-40 Boardlocks

Contact Type :

15 Signal, 2 Power

Current Rating (Amps) :

-

Product Status :

Active

Shell Material :

Steel

Minimum Operating Temperature :

- 25 C

Termination Style :

Solder Pin

Body Orientation :

RIGHT ANGLE

Backset Spacing :

-

Gender :

Male

Connector Style :

D-Sub, Combo
