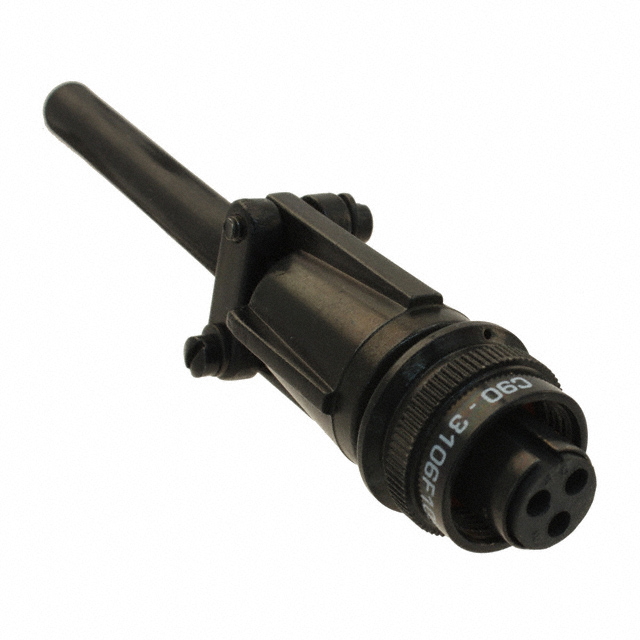

C90-3106F10SL-3S

Manufacturer :

Harwin

Product Category :

Circular Connector Assemblies

Packaging :

Bulk

Shell Finish :

Black Zinc Cobalt Alloy

ECCN Code :

EAR99

Orientation :

Keyed

Published :

2010

Contact Finish - Mating :

Silver

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Backshell Type :

Solid

Ingress Protection :

IP67 - Dust Tight, Waterproof

Empty Shell :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Contacts :

3

Current Rating :

13A

Feature :

Backshell, Cable Clamp, Coupling Nut

Military Standard :

MIL-DTL-5015

Connector Type :

Plug, Female Sockets

Backshell Material, Plating :

Aluminum Alloy, Black Zinc Cobalt

Fastening Type :

Threaded

Color :

Black

Ratings :

Dust Tight, IP67, Waterproof

Shielding :

Unshielded

MIL Conformance :

yes

IEC Conformance :

No

Mixed Contacts :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body Material :

Aluminium

Pbfree Code :

yes

Voltage - Rated AC :

500V

Voltage - Rated DC :

700V

Mounting Type :

Free Hanging (In-Line)

Filter Feature :

No

Radiation Hardening :

No

Insert Material :

Synthetic Rubber

DIN Conformance :

No

Number of Positions :

3 (Power)

Contact Material :

COPPER ALLOY

Insulation Resistance :

5GOhm

Series :

C90

Gender :

Male

Plating :

Chromate

Contact Gender :

FEMALE

Mount :

Cable, Free Hanging

Shell Size - Insert :

10SL-3

Factory Lead Time :

12 Weeks

Applications :

Automotive, Industrial

Environmental Characteristics :

MOISTURE/PRESSURE/TEMPERATURE RESISTANT

Termination :

Solder Cup

Cable Opening :

0.281 (7.14mm)

Operating Temperature :

-55°C~125°C

Shell Material :

Aluminum Alloy
