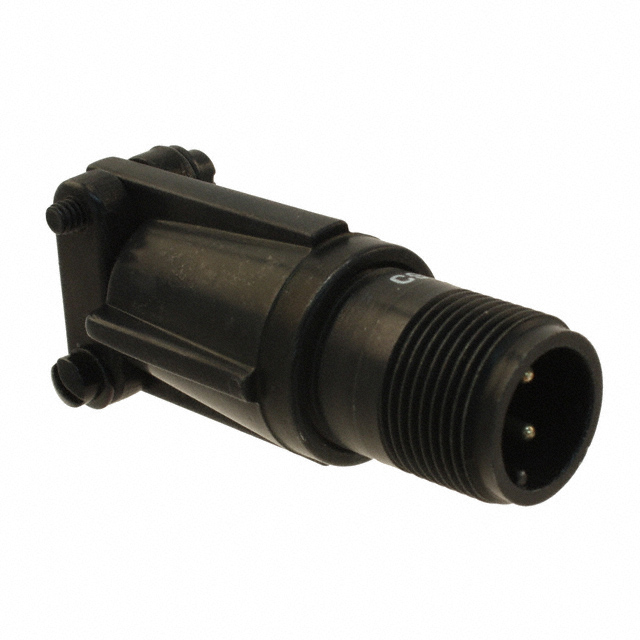

C90-3101F10SL-3P
Or copy the link below:
- Mfr.Part #
- C90-3101F10SL-3P
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 3P SOLDER CUP
- Stock
- 89
- In Stock ：
- 89
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Circular Connector Assemblies
- REACH SVHC :
- No SVHC
- Voltage - Rated AC :
- 500V
- Termination :
- Solder Cup
- Gender :
- Receptacle
- Applications :
- Automotive, Industrial
- Current Rating :
- 13A
- Shielding :
- Unshielded
- Contact Gender :
- Male
- Packaging :
- Bulk
- Connector Type :
- Receptacle, Male Pins
- Contact Material :
- COPPER ALLOY
- Orientation :
- Keyed
- Filter Feature :
- No
- Mount :
- Cable, Free Hanging
- Color :
- Black
- Insulation Resistance :
- 5GOhm
- Published :
- 2012
- Military Standard :
- MIL-DTL-5015
- Fastening Type :
- Threaded
- Cable Opening :
- 0.281 (7.14mm)
- Shell Size - Insert :
- 10SL-3
- Factory Lead Time :
- 12 Weeks
- Backshell Material, Plating :
- Aluminum Alloy, Black Zinc Cobalt
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Voltage - Rated DC :
- 700V
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- MIL Conformance :
- yes
- Mounting Type :
- Free Hanging (In-Line)
- Shell Material :
- Aluminum Alloy
- Number of Contacts :
- 3
- Shell Finish :
- Black Zinc Cobalt Alloy
- Number of Positions :
- 3 (Power)
- Operating Temperature :
- -55°C~125°C
- Series :
- C90
- IEC Conformance :
- No
- Feature :
- Backshell, Cable Clamp
- Backshell Type :
- Solid
- Ratings :
- Dust Tight, IP67, Waterproof
- Body Material :
- Aluminium
- Contact Finish - Mating :
- Silver
- Environmental Characteristics :
- MOISTURE/PRESSURE/TEMPERATURE RESISTANT
- Empty Shell :
- No
- Insert Material :
- Synthetic Rubber
- Plating :
- Chromate
- Datasheets
- C90-3101F10SL-3P
C90-3101F10SL-3P Documents
Receptacle, Male Pins Aluminum Alloy Free Hanging (In-Line) 3 (Power) Positions Solder Cup Silver Black Zinc Cobalt Alloy Bulk Keyed Threaded
C90-3101F10SL-3P Overview
This product is packaged in a Receptacle, Male Pins box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the C90 Series.In many ways, Backshell, Cable Clamp makes it more powerful.By Cable, Free Hanging, the part is mounted.Operating temperature is set to -55°C~125°C.
C90-3101F10SL-3P Features
C90 series
C90-3101F10SL-3P Applications
There are a lot of Harwin Inc.
C90-3101F10SL-3P Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
