C90-3101F10SL-4P

Share

Or copy the link below:

Mfr.Part #
C90-3101F10SL-4P
Manufacturer
Harwin
Package / Case
Datasheet
Download
Description
CONN RCPT MALE 2P SOLDER CUP
Stock
68
In Stock :
68

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Circular Connector Assemblies
Pbfree Code :
yes
Contact Finish - Mating :
Silver
Mixed Contacts :
No
Shell Material :
Aluminum Alloy
IEC Conformance :
No
Shell Finish :
Black Zinc Cobalt Alloy
Series :
C90
Number of Positions :
2 (Power)
Factory Lead Time :
12 Weeks
Current Rating :
13A
Body Material :
Aluminium
RoHS Status :
ROHS3 Compliant
Ratings :
Dust Tight, IP67, Waterproof
Applications :
Automotive, Industrial
Contact Gender :
Male
Gender :
Receptacle
Cable Opening :
0.281 (7.14mm)
Backshell Type :
Solid
Orientation :
Keyed
Number of Contacts :
2
REACH SVHC :
No SVHC
Contact Material :
COPPER ALLOY
Military Standard :
MIL-DTL-5015
Fastening Type :
Threaded
Insulation Resistance :
5GOhm
Voltage - Rated DC :
700V
Ingress Protection :
IP67 - Dust Tight, Waterproof
Connector Type :
Receptacle, Male Pins
Mounting Type :
Free Hanging (In-Line)
Plating :
Chromate
Published :
2010
Termination :
Solder Cup
ECCN Code :
EAR99
Voltage - Rated AC :
500V
Empty Shell :
No
Backshell Material, Plating :
Aluminum Alloy, Black Zinc Cobalt
Operating Temperature :
-55°C~125°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Color :
Black
Insert Material :
Synthetic Rubber
MIL Conformance :
yes
DIN Conformance :
No
Shell Size - Insert :
10SL-4
Feature :
Backshell, Cable Clamp
Packaging :
Bulk
Filter Feature :
No
Mount :
Cable, Free Hanging
Shielding :
Unshielded
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Environmental Characteristics :
MOISTURE/PRESSURE/TEMPERATURE RESISTANT
Introducing Circular Connector Assemblies Harwin C90-3101F10SL-4P from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-55°C~125°C, C90-3101F10SL-4P pinout, C90-3101F10SL-4P datasheet PDF, C90-3101F10SL-4P amp .Beyond Circular Connector Assemblies Harwin C90-3101F10SL-4P ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

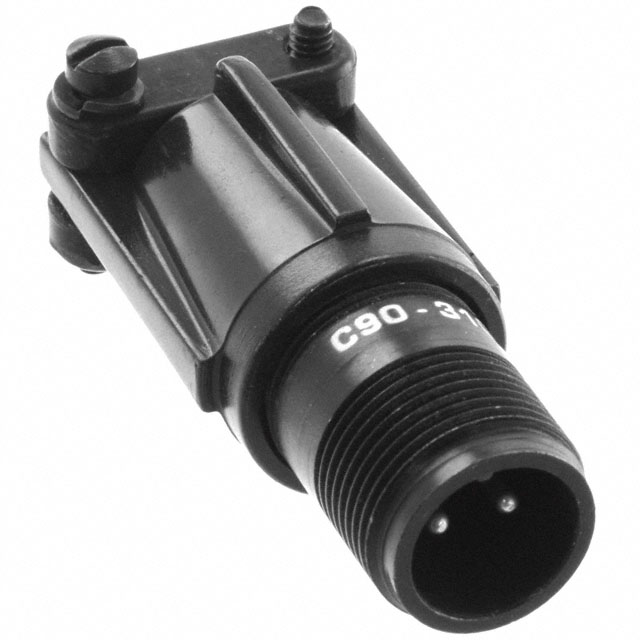

Harwin C90-3101F10SL-4P


Receptacle, Male Pins Aluminum Alloy Free Hanging (In-Line) 2 (Power) Positions Solder Cup Silver Black Zinc Cobalt Alloy Bulk Keyed Threaded

C90-3101F10SL-4P Overview


The packaging is Receptacle, Male Pins.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is from the C90 Series.A number of advantages are provided by its Backshell, Cable Clamp feature.Mounted by Cable, Free Hanging.Device runs at -55°C~125°C Operating Temperature.

C90-3101F10SL-4P Features


C90 series


C90-3101F10SL-4P Applications


There are a lot of Harwin Inc.
C90-3101F10SL-4P Circular Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
