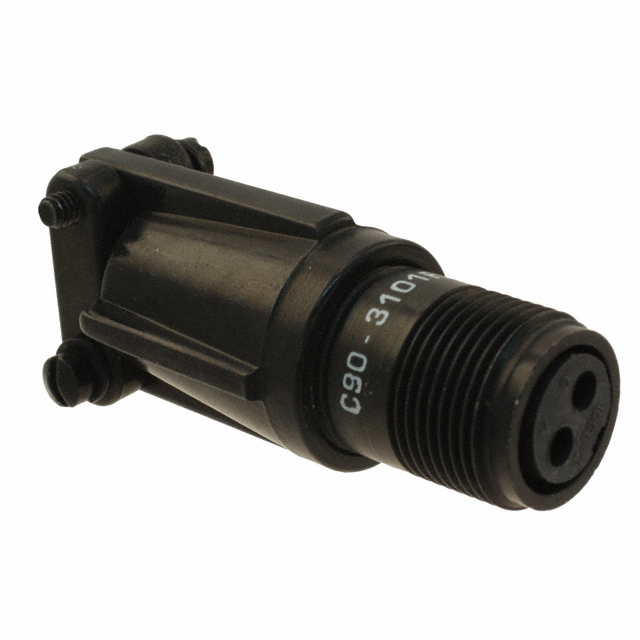

C90-3101F10SL-4S
- Mfr.Part #
- C90-3101F10SL-4S
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 2P SOLDER CUP
- Stock
- 94
- In Stock :
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Circular Connector Assemblies
- Insert Material :
- Synthetic Rubber
- Insulation Resistance :
- 5GOhm
- Shielding :
- Unshielded
- Pbfree Code :
- yes
- Mount :
- Cable, Free Hanging
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Receptacle, Female Sockets
- Shell Material :
- Aluminum Alloy
- IEC Conformance :
- No
- Backshell Type :
- Solid
- Mounting Type :
- Free Hanging (In-Line)
- Number of Positions :
- 2 (Power)
- Plating :
- Chromate
- Contact Material :
- COPPER ALLOY
- Filter Feature :
- No
- Fastening Type :
- Threaded
- Voltage - Rated DC :
- 700V
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Contacts :
- 2
- REACH SVHC :
- No SVHC
- Packaging :
- Bulk
- Operating Temperature :
- -55°C~125°C
- Current Rating :
- 13A
- Series :
- C90
- Termination :
- Solder Cup
- Mixed Contacts :
- No
- Published :
- 2011
- Environmental Characteristics :
- MOISTURE/PRESSURE/TEMPERATURE RESISTANT
- Factory Lead Time :
- 12 Weeks
- Shell Finish :
- Black Zinc Cobalt Alloy
- Cable Opening :
- 0.281 (7.14mm)
- Feature :
- Backshell, Cable Clamp
- Body Material :
- Aluminium
- Voltage - Rated AC :
- 500V
- Military Standard :
- MIL-DTL-5015
- Gender :
- Receptacle
- MIL Conformance :
- yes
- Shell Size - Insert :
- 10SL-4
- Applications :
- Automotive, Industrial
- Backshell Material, Plating :
- Aluminum Alloy, Black Zinc Cobalt
- Color :
- Black
- Ratings :
- Dust Tight, IP67, Waterproof
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Empty Shell :
- No
- Contact Gender :
- FEMALE
- Orientation :
- Keyed
- Contact Finish - Mating :
- Silver
- Datasheets
- C90-3101F10SL-4S
C90-3101F10SL-4S Documents

Receptacle, Female Sockets Aluminum Alloy Free Hanging (In-Line) 2 (Power) Positions Solder Cup Silver Black Zinc Cobalt Alloy Bulk Keyed Threaded
C90-3101F10SL-4S Overview
The packaging contains Receptacle, Female Sockets.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number C90 belongs to the C90 Series.In many ways, it is more powerful due to its Backshell, Cable Clamp feature.There is a Cable, Free Hanging mount on the part.This device operates at a temperature of -55°C~125°C.
C90-3101F10SL-4S Features
C90 series
C90-3101F10SL-4S Applications
There are a lot of Harwin Inc.
C90-3101F10SL-4S Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
