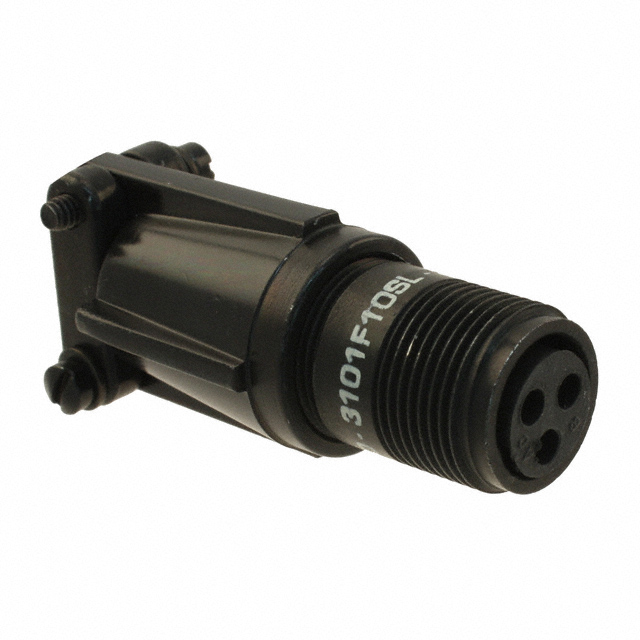

C90-3101F10SL-3S
Or copy the link below:
- Mfr.Part #
- C90-3101F10SL-3S
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 3P SOLDER CUP
- Stock
- 96
- In Stock ：
- 96
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Circular Connector Assemblies
- Operating Temperature :
- -55°C~125°C
- Ratings :
- Dust Tight, IP67, Waterproof
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 12 Weeks
- Shell Size - Insert :
- 10SL-3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Military Standard :
- MIL-DTL-5015
- Orientation :
- Keyed
- Mounting Type :
- Free Hanging (In-Line)
- Body Material :
- Aluminium
- Gender :
- Receptacle
- REACH SVHC :
- No SVHC
- Current Rating :
- 13A
- Packaging :
- Bulk
- Series :
- C90
- Insulation Resistance :
- 5GOhm
- Contact Finish - Mating :
- Silver
- Current Rating (Amps) :
- 13A
- Shell Finish :
- Black Zinc Cobalt Alloy
- Termination :
- Solder Cup
- Voltage - Rated DC :
- 700V
- Plating :
- Chromate
- Contact Gender :
- FEMALE
- Shielding :
- Unshielded
- Voltage - Rated AC :
- 500V
- Shell Material :
- Aluminum Alloy
- Voltage - Rated :
- 500VAC 700VDC
- Mount :
- Cable, Free Hanging
- Contact Plating :
- Silver
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Applications :
- Automotive, Industrial
- Connector Type :
- Receptacle, Female Sockets
- Color :
- Black
- Min Operating Temperature :
- -55°C
- Number of Positions :
- 3 (Power)
- Feature :
- Backshell, Cable Clamp
- Backshell Material, Plating :
- Aluminum Alloy, Black Zinc Cobalt
- Max Operating Temperature :
- 125°C
- Contact Material :
- COPPER ALLOY
- Fastening Type :
- Threaded
- Insert Material :
- Synthetic Rubber
- Number of Contacts :
- 3
- Cable Opening :
- 0.281 (7.14mm)
- Published :
- 2012
- Datasheets
- C90-3101F10SL-3S
Receptacle, Female Sockets Aluminum Alloy Free Hanging (In-Line) 3 (Power) Positions Solder Cup Silver Black Zinc Cobalt Alloy Bulk Keyed Threaded
C90-3101F10SL-3S Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the C90 Series.You should use it when it's below 125°C.A minimum temperature of -55°C is required for the operation of this device.In many ways, its Backshell, Cable Clamp feature makes it more powerful.Cable, Free Hanging is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
C90-3101F10SL-3S Features
C90 series
C90-3101F10SL-3S Applications
There are a lot of Harwin Inc.
C90-3101F10SL-3S Circular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
