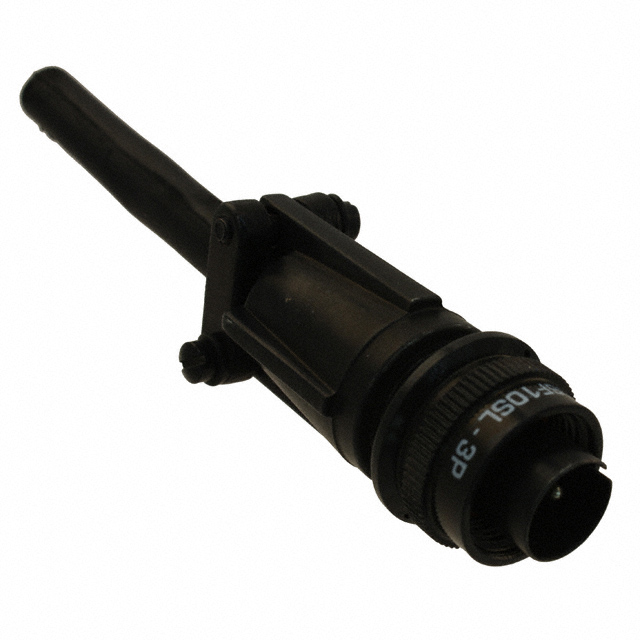

C90-3106F10SL-3P

Manufacturer :

Harwin

Product Category :

Circular Connector Assemblies

Connector Type :

Plug, Male Pins

Ratings :

Dust Tight, IP67, Waterproof

Environmental Characteristics :

MOISTURE/PRESSURE/TEMPERATURE RESISTANT

Filter Feature :

No

DIN Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Empty Shell :

No

Factory Lead Time :

12 Weeks

Contact Material :

COPPER ALLOY

Insert Material :

Synthetic Rubber

Ingress Protection :

IP67 - Dust Tight, Waterproof

Mount :

Cable, Free Hanging

Backshell Type :

Solid

Shell Finish :

Black Zinc Cobalt Alloy

Military Standard :

MIL-DTL-5015

IEC Conformance :

No

Packaging :

Bulk

Insulation Resistance :

5GOhm

Operating Temperature :

-55°C~125°C

Body Material :

Aluminium

Applications :

Automotive, Industrial

Color :

Black

Shell Material :

Aluminum Alloy

Pbfree Code :

yes

Shielding :

Unshielded

REACH SVHC :

No SVHC

Backshell Material, Plating :

Aluminum Alloy, Black Zinc Cobalt

Voltage - Rated AC :

500V

Contact Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Contacts :

3

Series :

C90

Fastening Type :

Threaded

RoHS Status :

ROHS3 Compliant

Termination :

Solder Cup

Cable Opening :

0.281 (7.14mm)

Mixed Contacts :

No

Shell Size - Insert :

10SL-3

Orientation :

Keyed

Feature :

Backshell, Cable Clamp, Coupling Nut

Voltage - Rated DC :

700V

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

yes

Current Rating :

13A

Number of Positions :

3 (Power)

Plating :

Chromate

Contact Finish - Mating :

Silver

Published :

2010
