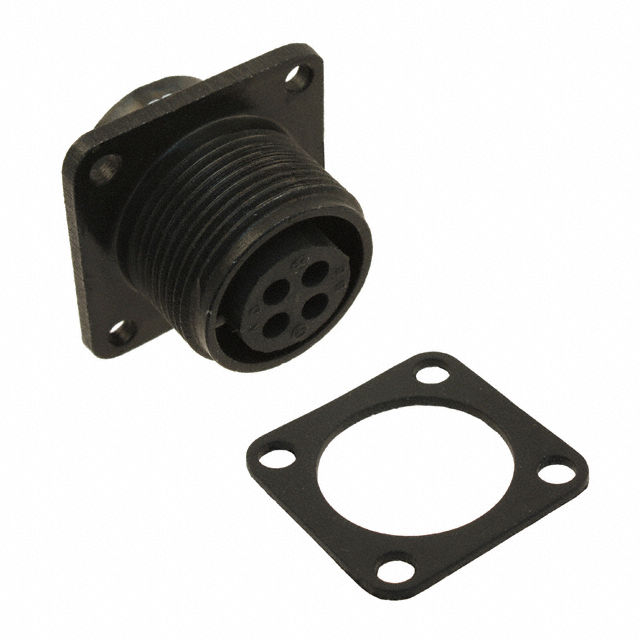

C90-3102R14S-2S

Manufacturer :

Harwin

Product Category :

Circular Connector Assemblies

Backshell Type :

Solid

Empty Shell :

No

Connector Type :

Receptacle, Female Sockets

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Color :

Black

Mounting Type :

Panel Mount

Pbfree Code :

yes

Voltage - Rated AC :

500V

Plating :

Chromate

Shell Finish :

Black Zinc Cobalt Alloy

DIN Conformance :

No

REACH SVHC :

No SVHC

Orientation :

Keyed

Packaging :

Bulk

Fastening Type :

Threaded

Applications :

Automotive, Industrial

Insulation Resistance :

5GOhm

Cable Opening :

0.745 (18.92mm)

Contact Material :

COPPER ALLOY

Operating Temperature :

-55°C~125°C

Contact Gender :

FEMALE

Insert Material :

Synthetic Rubber

RoHS Status :

ROHS3 Compliant

MIL Conformance :

yes

Body Material :

Aluminium

Mounting Feature :

Flange

Mixed Contacts :

No

Current Rating :

13A

Contact Finish - Mating :

Silver

Factory Lead Time :

12 Weeks

Military Standard :

MIL-DTL-5015

Voltage - Rated DC :

700V

Environmental Characteristics :

MOISTURE/PRESSURE/TEMPERATURE RESISTANT

IEC Conformance :

No

Shell Material :

Aluminum Alloy

Termination :

Solder Cup

Ingress Protection :

IP67 - Dust Tight, Waterproof

Shielding :

Unshielded

Gender :

Receptacle

Shell Size - Insert :

14S-2

Filter Feature :

No

Number of Contacts :

4

Mount :

Flanges, Panel

Series :

C90

Ratings :

Dust Tight, IP67, Waterproof

Published :

2009

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

4 (Power)
