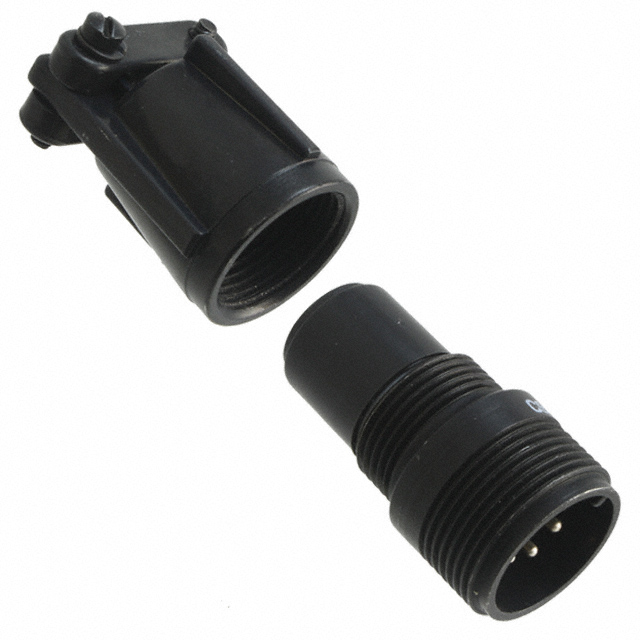

C90-3101F14S-6P

Manufacturer :

Harwin

Product Category :

Circular Connector Assemblies

Contact Gender :

Male

Ingress Protection :

IP67 - Dust Tight, Waterproof

Published :

2012

RoHS Status :

ROHS3 Compliant

Connector Type :

Receptacle, Male Pins

Mounting Type :

Free Hanging (In-Line)

Insulation Resistance :

5GOhm

Number of Positions :

6 (Power)

Backshell Material, Plating :

Aluminum Alloy, Black Zinc Cobalt

Cable Opening :

0.406 (10.30mm)

Pbfree Code :

yes

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

12 Weeks

Packaging :

Bulk

DIN Conformance :

No

Feature :

Backshell, Cable Clamp

Military Standard :

MIL-DTL-5015

Contact Finish - Mating :

Silver

Ratings :

Dust Tight, IP67, Waterproof

Shell Material :

Aluminum Alloy

Plating :

Chromate

Current Rating :

13A

Number of Contacts :

6

Gender :

Receptacle

IEC Conformance :

No

Applications :

Automotive, Industrial

Mount :

Cable, Free Hanging

Operating Temperature :

-55°C~125°C

Shell Finish :

Black Zinc Cobalt Alloy

Backshell Type :

Solid

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Environmental Characteristics :

MOISTURE/PRESSURE/TEMPERATURE RESISTANT

Shell Size - Insert :

14S-6

Shielding :

Unshielded

Filter Feature :

No

Mixed Contacts :

No

Termination :

Solder Cup

Color :

Black

Orientation :

Keyed

Body Material :

Aluminium

Series :

C90

Insert Material :

Synthetic Rubber

Empty Shell :

No

Voltage - Rated DC :

700V

MIL Conformance :

yes

Fastening Type :

Threaded

Contact Material :

COPPER ALLOY

REACH SVHC :

No SVHC

Voltage - Rated AC :

500V
