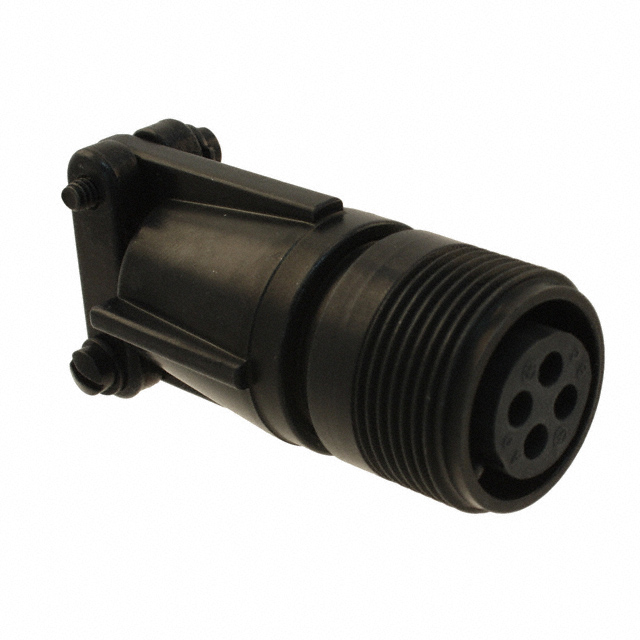

C90-3101F14S-2S

Manufacturer :

Harwin

Product Category :

Circular Connector Assemblies

Backshell Material, Plating :

Aluminum Alloy, Black Zinc Cobalt

IEC Conformance :

No

Shell Material :

Aluminum Alloy

Termination :

Solder Cup

Operating Temperature :

-55°C~125°C

Empty Shell :

No

Cable Opening :

0.406 (10.30mm)

Feature :

Backshell, Cable Clamp

Voltage - Rated DC :

700V

Fastening Type :

Threaded

Number of Contacts :

4

Pbfree Code :

yes

Contact Finish - Mating :

Silver

Applications :

Automotive, Industrial

Contact Material :

COPPER ALLOY

Shielding :

Unshielded

Contact Gender :

FEMALE

Backshell Type :

Solid

Mount :

Cable, Free Hanging

Published :

2010

Number of Positions :

4 (Power)

Mixed Contacts :

No

Ingress Protection :

IP67 - Dust Tight, Waterproof

Filter Feature :

No

Current Rating :

13A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plating :

Chromate

MIL Conformance :

yes

RoHS Status :

ROHS3 Compliant

Gender :

Receptacle

Orientation :

Keyed

DIN Conformance :

No

Insert Material :

Synthetic Rubber

Factory Lead Time :

12 Weeks

Environmental Characteristics :

MOISTURE/PRESSURE/TEMPERATURE RESISTANT

Connector Type :

Receptacle, Female Sockets

Color :

Black

Shell Finish :

Black Zinc Cobalt Alloy

Shell Size - Insert :

14S-2

Series :

C90

Body Material :

Aluminium

Packaging :

Bulk

Voltage - Rated AC :

500V

Ratings :

Dust Tight, IP67, Waterproof

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance :

5GOhm

Military Standard :

MIL-DTL-5015

REACH SVHC :

No SVHC

Mounting Type :

Free Hanging (In-Line)
