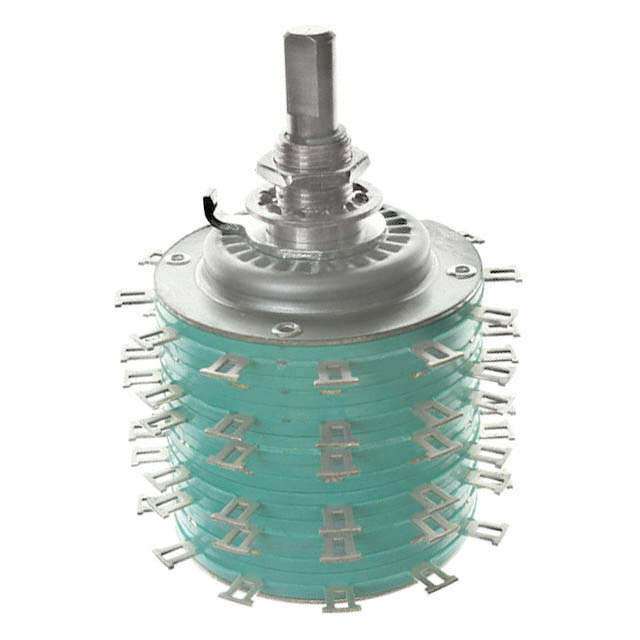

C7D0323N
Or copy the link below:
- Mfr.Part #
- C7D0323N
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 23POS 500MA 125V
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Max Voltage Rating (DC) :
- 28V
- Mechanical Life :
- 25000 cycles
- Contact Finish :
- Silver
- Current Rating (Amps) :
- 500mA AC 1A DC
- Index Angle :
- 15 °
- Number of Decks :
- 3
- Index Stops :
- FIXED
- Depth Behind Panel :
- 44.38mm
- Mounting Type :
- Panel Mount
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Contact Timing :
- Non-Shorting (BBM)
- ECCN Code :
- EAR99
- Voltage - Rated AC :
- 125V
- Switch Type :
- ROTARY SWITCH
- Throw Configuration :
- 3P23T
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 125V
- Actuator Type :
- Flatted (6.35mm Dia)
- Published :
- 2006
- Series :
- C7
- Actuator Length :
- 14.29mm
- Circuit per Deck :
- SP23T
- Contact Material :
- Brass
- REACH SVHC :
- Unknown
- Termination Style :
- Solder Lug
- Number of Positions :
- 23
- Mount :
- Panel
- Termination :
- Solder
- Lead Free :
- Lead Free
- Factory Lead Time :
- 8 Weeks
- Contact Style :
- Non-Shorting
- Number of Poles per Deck :
- 1
- Orientation :
- Vertical
- Contact Resistance :
- 3mOhm
- Datasheets
- C7D0323N
