C7D0123N

Share

Or copy the link below:

Mfr.Part #
C7D0123N
Manufacturer
Electroswitch
Package / Case
Datasheet
Download
Description
SWITCH ROTARY 23POS 500MA 125V
Stock
11
In Stock :
11

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Electroswitch
Product Category :
Circuit per Deck :
SP23T
Index Stops :
FIXED
Contact Plating :
Silver
Max Voltage Rating (AC) :
125V
Factory Lead Time :
6 Weeks
Termination Style :
Solder Lug
Contact Style :
Non-Shorting
Lead Free :
Lead Free
Contact Material :
Brass
Number of Decks :
1
Current Rating :
1A
Series :
C7
Number of Positions :
23
Actuator Length :
14.29mm
Moisture Sensitivity Level (MSL) :
Not Applicable
Published :
2006
Voltage - Rated DC :
28V
Orientation :
Straight
Voltage - Rated :
28V
Number of Poles per Deck :
1
Contact Timing :
Non-Shorting (BBM)
Actuator Type :
Flatted (6.35mm Dia)
Index Angle :
15 °
Max Voltage Rating (DC) :
28V
Termination :
Solder
Throw Configuration :
SP23T
Current Rating (Amps) :
500mA AC 1A DC
REACH SVHC :
Unknown
Contact Resistance :
3mOhm
Number of Poles :
1
RoHS Status :
RoHS Compliant
Panel Cutout Dimensions :
Circular - 9.78mm Dia
Depth Behind Panel :
20.60mm
Illumination Type :
Illuminated
Mount :
Panel, Through Hole
Contact Finish :
Silver
Angle of Throw :
15°
Mounting Type :
Panel Mount
Voltage - Rated AC :
125V
Mechanical Life :
25000 cycles
Introducing Electroswitch C7D0123N from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, C7D0123N pinout, C7D0123N datasheet PDF, C7D0123N amp .Beyond Electroswitch C7D0123N ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

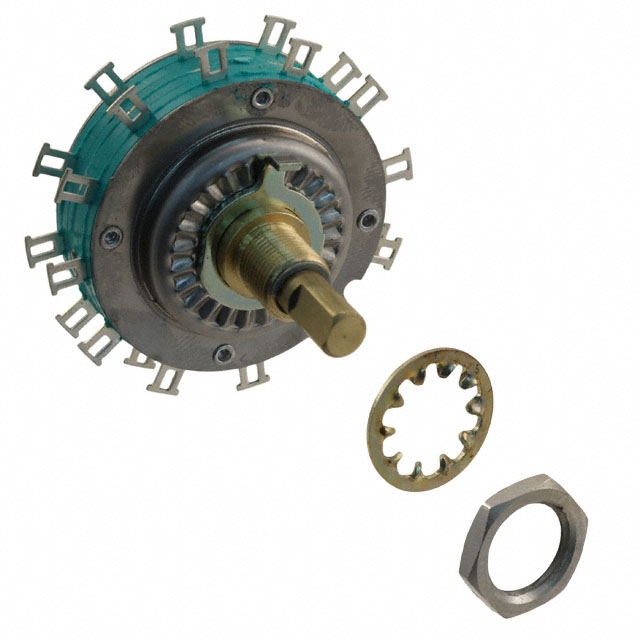

Electroswitch C7D0123N
